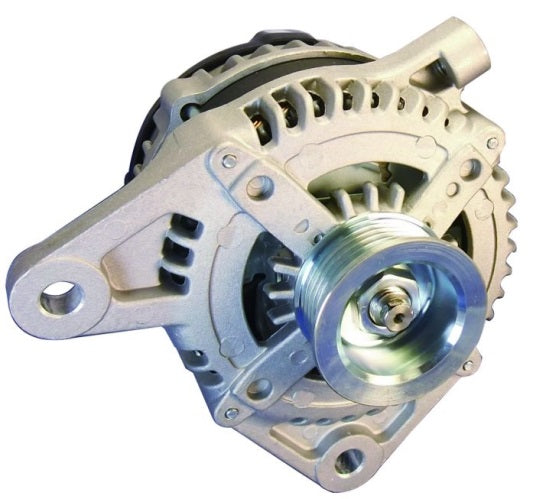

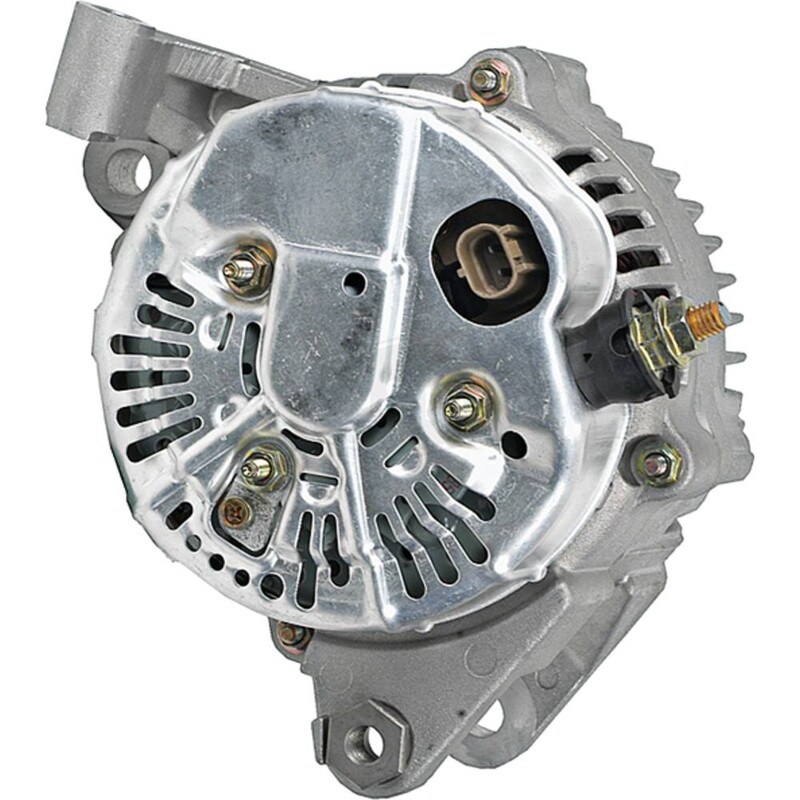

11295N Denso- Hairpin Alternator for Chrysler, Audi, and VW

11295N Denso- Hairpin Alternator for Chrysler, Audi, and VW

11295N

$270.95 USD
$270.95 USD
Sale Sold out
Shipping calculated at checkout.

11295
These Alternators use External Voltage Regulator Bpass kit ERCKFRM081 or ERCKFRMF081

Specifications

  • MFR:DENSO type
  • Mfr Series:HAIRPIN
  • AMPERAGE:160
  • 100% New
  • PULLEY CLASS:S6
  • ROTATION:CW
  • SPECS FOR:Denso Hairpin ER/IF
  • SPECS:160 Amp/12 Volt, CW, 6-Groove Pulley
  • VOLTAGE:12

Replaces: Audi, Volkswagen 7B0-903-015B, 7B0903015, Chrysler 04801304AA, 04801304AC, 4801304AA, 4801304AC, Denso 421000-0540, 421000-0541, 421000-0542, 421000-0700

USED ON, Chrysler 2008-2010 Dodge 2008-2010 Jeep 2007-2008 Volkswagen 2009-2010

LESTER, 11243, 11295

Bill of Materials

Part Type Part Number

BEARING, BALL

  63034N


BRUSH HOLDER ASSY, ALT

 398206

COVER, ALT

 4682473  4682700

FRAME, DE, ALT

 218297

FRAME, SRE, ALT

 228257

RECTIFIER

 INR434  INR439AL

SLIP RING, ROTOR

 2882854

STATOR

 2782281

TERMINAL BLOCK, ALT

 4682208 or 46822081MOD
