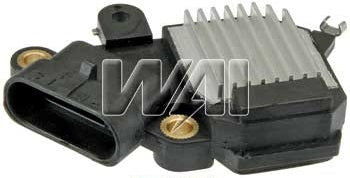

# D198HD - Voltage Regulator, 12 Volt, P-L-F-S Terminals, 15.1 Volt set point, 10 sec. LRC
# D198HD - Voltage Regulator, 12 Volt, P-L-F-S Terminals, 15.1 Volt set point, 10 sec. LRC
SKU:D198HD
Regular price
$42.95 USD
Regular price
Sale price
$42.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| D198HD Voltage Regulator for Delco AD230, AD237 Series Alternators 12 Volt, B-Circuit, P-L-F-S Terminals, 15.1 Vset, 10 sec. LRC |
| Notes: For remote battery applications. B+ connection made at rectifier lead-frame (not under B+ stud spacer) |
| Features: 100% New Heavy Duty ASVR Design OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection Welded construction - no solder joints for hi-temperature reliability & increased field life |
| Also See: D198XHD |
| Used On: Buick (1999-2004) , Oldsmobile (2001-2003) , Pontiac (2000-2004) |
| Replaces: DELCO 10453673, 10483777 |
| Unit Nos: DELCO 10464408, 10464430, 10464439, 10464440, 10464442, 10464485, 10464486, 10464491, 10464492, 10480241, 10480244, 10480303, 10480357, 10480411, 10480414, 15744913, 25744163, 25744164W, 25744165A; GM 19244737, 19244743, 25744164, 25744165 |
| Lester Nos: 8244, 8245, 8277, 8278, 8286 |
