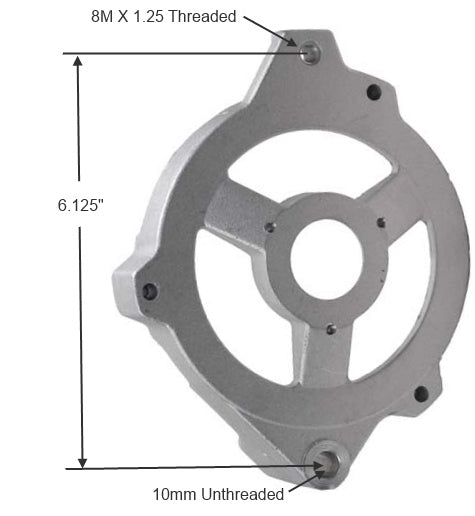

21119 - Front Housing (D.E.) Drive end with 6 -1/8" Hole to hole mounting

21119 - Front Housing (D.E.) Drive end with 6 -1/8" Hole to hole mounting

21119

$55.71 USD
$55.71 USD
Sale Sold out
Shipping calculated at checkout.
21119 Front Housing (D.E.) frame for Delco CS130 Series Alternators
Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm
Notes:  Used w/ 6203 ball bearing,
Features:  Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws 46-1505
Also See:  21-163
Used On:  Buick (1986-1992) , Oldsmobile (1986-1991) , Pontiac (1986-1991)
Replaces:  Delco 10495814, 10495816, D3456
Unit Nos:  DELCO 10463003, 10463003, 10463004, 10463004, 10463018, 10463019, 10463029, 10463117, 10463177, 10463208, 10479898, 10479937, 10479938, 10497118, 10497119, 1101123, 1101124, 1101144, 1101145, 1101190, 1101475, 1101608, 1105669, 1105670
Lester Nos:  7801-11, 7801-3, 7801-7, 7870-11, 7872-3
