# 21120 - Front Housing, Early Style CS144 Series Alternators

# 21120 - Front Housing, Early Style CS144 Series Alternators

21120

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
Drive End Frame (front Housing)


For: Delco CS144 Series Early Style Alternators

Used On: (1990-86) Buick, Cadillac, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 1989601, 10470800, D3449, D3462

Unit Nos: Delco 1101182, 1101183, 1101237, 1101238, 1101250, 1101274, 1101316, 1101325, 1101326, 1101331, 1101349, 1101454, 1101566, 1101567, 1101573, 1101597, 1101604, 1101849
1105615, 1105616, 1105684, 1105685
10479838, 10479843, 10479844, 10479853, 10479854, 10479855, 10479904, 10479907
10480131

Lester Nos: 7805, 7864, 8119

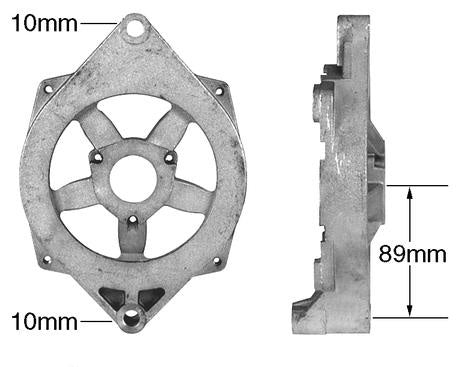

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 20mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 144mm

Notes: Used w/ 6203 ball bearing
