# 21135-1 - Drive End Frame, 6-12 Mount, 303 Bearing, Delco CS130 Series Alternators, Replaces Delco 10467239, 10467240

6/12 Mount Drive End Housing For Delco CS130 Series Alternators

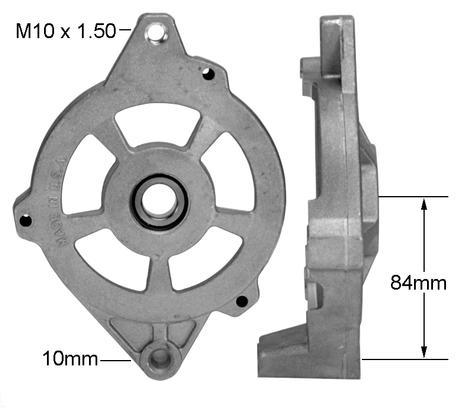

Dimensions: Mounting Ear Hole Size: M10 x 1.50, Mounting Ear Thickness: 16mm, Mounting Foot Hole Size: 10mm, Mounting Foot to Bearing Center: 84mm, Bearing Bore Diameter: 47mm, Stator Bore Diameter: 126mm

Notes: Used w/ 63034N ball bearing, requires 461618 rotor spacer.

For version w/ 6203 ball bearing use 21135.

Used On: Chevrolet (1990-1996), GMC (1990-1996)

Replaces: DELCO, 10467239, 10467240

Unit Nos: DELCO, 10463144, 10463145, 10463529, 10480093, 1101478, 1101480, LESTER, 7945-3, 7960-3

Ref: 370-12042
