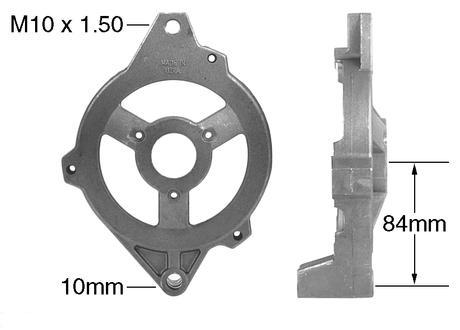

# 211501 - Drive End Frame, 6-12 Mount, 203 Bearing, Delco CS130 Series Alternators, Replaces Delco 10467239, 10467240

6/12 Mount Drive End Housing For Delco CS130 Series Alternators

Dimensions: Mounting Ear Hole Size: M10 x 1.50, Mounting Ear Thickness: 16mm, Mounting Foot Hole Size: 10mm, Mounting Foot to Bearing Center: 84mm, Bearing Bore Diameter: 40mm, Stator Bore Diameter: 126mm

Notes: Used w/ 62034N ball bearing, requires 4616022 rotor spacer.

For version w/ 6303 ball bearing use 211501.

Features: Allows use of either snap-on bearing retainer (461507) or bearing retainer & screws (461505)

Used On: Chevrolet (1990-1996), GMC (1990-1996)

Replaces: DELCO, 10467239, 10467240

Unit Nos: DELCO, 10463144, 10463145, 1101478, 1101480, LESTER, 7945-3, 7960-3
