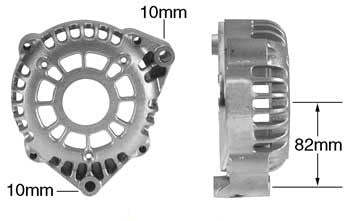

21159 - Drive End Frame Delco CS130D Series Alternators - 2 Mounting Feet w/ 10mm Holes, 51mm (2in) Thick

21159 - Drive End Frame Delco CS130D Series Alternators

Used On: (2005-96) Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile

Unit Nos: Delco 10480167, 10480168, 10480170, 10480198, 10480251, 10480254; Lester 8206, 8216, 8227, 8231

Dimensions:
Mounting Ear Hole Size: 10mm
Mounting Ear Thickness: 51mm
Mounting Foot Hole Size: 10mm
Mounting Foot to Bearing Center: 82mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Notes: Used w/ 63034N ball bearing & 461510 bearing retainer
