#21220 - Ford 3G Large case Drive End Housing

#21220 - Ford 3G Large case Drive End Housing

21220

$55.71 USD
$55.71 USD
Sale Sold out
Shipping calculated at checkout.
# 21220 Drive End (front housing)
For :  Ford 3G Series 115A Large Case Alternators
Used On:  Ford 1992-1999
Replaces:  FORD F3DU-10A351-AA, F3EU-10A351-AA
Unit Nos:  FORD F3HT-10300-LA, F3HZ-10346-B, F3PU-10346-BA, F5HT-10300-BA, F5HZ-10346-E, F5PU-10346-EA, F6HT-10300-KA, F6HT-10300-MA, F6PU-10346-AF, F6PU-10346-TA, F6PZ-10346-AF, F6PZ-10346-AFRM, F6PZ-10346-TA, F6PZ-10346-TARM; FORDENG F3HT-LA, F5HT-BA, F6HT-KA, F6HT-MA
Lester Nos:  7778-11, 7778-3

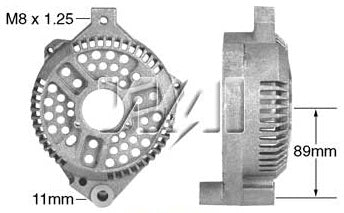

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
 Mtg. Ear Thickness: 21mm
 Mtg. Foot Hole Size: 11mm
 Mtg. Foot to Bearing Center: 89mm
 Bearing Bore Dia: 47mm
 Stator Bore Dia: 142mm
 Frame OD: 148mm
Notes:
Used with 6303 ball bearing
View full details
