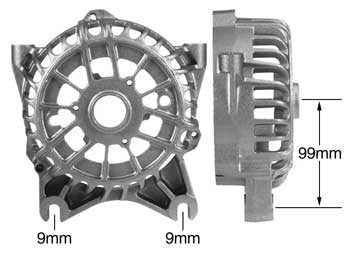

# 21229 - Drive End Frame, Ford 6G Series Large Frame Alternators

21229 - Drive End Frame, Ford 6G Series Large Frame Alternators

For: Ford 6G Series Large Frame Alternators

• Mounting Foot Hole Size: 9mm
• Mounting Foot to Bearing Center: 106mm
• Bearing Bore Dia: 47mm
• Stator Bore Dia: 142mm

Notes: Used w/ 6303 ball bearing. For version w/ machined collar use 21-243.

Also See: 21-243

Used On: Ford (1998-2008) , Lincoln (1998-2011) , Mercury (1998-2008)

Replaces: Ford F8AU-10A351-AA

Unit Nos: FORD 3W1U-10300-BB, 3W1Z-10346-BA, 3W1Z-10346-BARM, 3W1Z-10346-CA, 5W1T-10300-AB, 5W1Z-10346-AA, 6W1Z-10346-AA, 6W1Z-10346-AARM, 6W1Z-10346-ABRM, F8AU-10300-AB, F8AU-10300-AC, F8AU-10300-AD, F8AZ-10346-AB, F8AZ-10346-ABRM, F8AZ-10V346-ABRM, F8AZ-10V346-ACRM; FORDENG 3W1U-BB, 5W1T-AB, F8AU-AB, F8AU-AC, F8AU-AD; LESTER 7795, 8315, 8472
