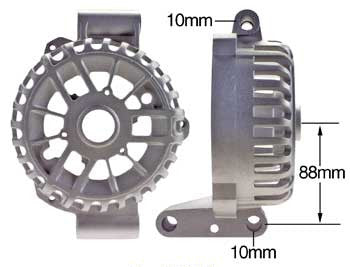

# 21234 - Drive End (DE) Housing, For Ford 6G Series Large Case Alternators

21234 - Drive End (DE) Housing, For Ford 6G Series Large Case Alternators

For: Ford 6G Series Large Frame Alternators

• Mounting Ear Hole Size: 10mm
• Mounting Ear Thickness: 55mm
• Mounting Foot Hole Size: 10mm
• Mounting Foot to Bearing Center: 88mm
• Bearing Bore Dia: 47mm
• Stator Bore Dia: 142mm
• Stator Bore Depth: 32.3mm

Notes: Used w/ 6303 ball bearing. 21234 & 21245 look similar except: 21245: 36.5mm stator bore depth

Used On: Ford (1999-2007), Mercury (2004-2007)

Replaces: Ford XF2U-10A351-AA

Unit Nos: Ford 3F2U-10300-AA, 3F2Z-10346-AA, 6F2Z-10346-BA, 6F2Z-10346-BBRM, 6F2Z-10V346-BBRM, XF2U-10300-BC, XF2U-10300-BD, XF2U-10300-BE, XF2Z-10346-BA, XF2Z-10346-BARM, XF2Z-10V346-BBRM, XS71-10300-LA, Ford Engineering 3F2U-AA, 4F23-AA, XF2U-BC, XF2U-BD, XF2U-BE, XS71-LA, Lester 8253, 8408
