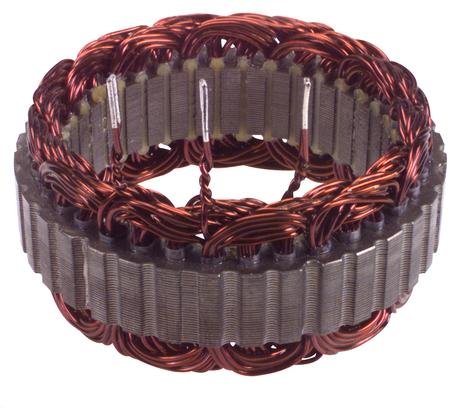

# 27137 - Stator, 105 Amp, 12 Volt, Delco CS130D Series 105A Alternators

27137 - Stator, 105 Amp, 12 Volt, Delco CS130D Series 105A Alternators

For: Delco CS130D Series 105A Alternators

Dimensions: 97mm ID x 130mm Mounting OD, 25mmT Lam Stack

Notes: 105 amp stators are not interchangeable with 102 amp stators due to different thickness of lam stacks. For CS130D 102 amp applications use 27-142.

Features: 100% New

Also See: 27-137-140, 27-137-160, 27-137-180, 27-137-220

Used On: Acura (1997-1999), Buick (1994-1998), Cadillac (1999-2000), Chevrolet (1994-2005), GMC (1994-2005), Honda (1998-2002), Isuzu (1996-2000), Oldsmobile (1993-2003), Pontiac (1994-2003)

Replaces: Delco 10475742, 10476400

Unit Nos: Acura 06311-P8C-505RM, 31100-P8A-A01, 31100-P8A-A02, Delco 10244795, 10449257, 10463390, 10463405, 10463406, 10463407, 10463408, 10463412, 10463440, 10463443, 10463605, 10463630, 10463631, 10463632, 10463638, 10463639, 10463651, 10463652, 10463653, 10463654, 10463685, 10463688, 10463690, 10463838, 10463842, 10463843, 10463884, 10463940, 10463963, 10463964, 10463965, 10463966, 10464065, 10464066, 10464067, 10464069, 10464071, 10464072, 10464073, 10464074, 10464075, 10464084, 10464085, 10464086, 10464087, 10464090, 10464401, 10464409, 10464410, 10464411, 10464417, 10464418, 10464419, 10464420, 10464424, 10464431, 10464432, 10464433, 10464437, 10464457, 10464462, 10464465, 10479881, 10479981, 10479984, 10480017, 10480043, 10480052, 10480065, 10480071, 10480072, 10480074, 10480076, 10480078, 10480079, 10480119, 10480167, 10480168, 10480170, 10480182, 10480187, 10480188, 10480189, 10480190, 10480191, 10480195, 10480196, 10480198, 10480217, 10480218, 10480228, 10480233, 10480235, 10480236, 10480237, 10480238, 10480240, 10480250, 10480251, 10480252, 10480254, 10480259, 10480260, 10480262, 10480263, 10480264, 10480288, 10480289, 10480301, 10480307, 10480321, 10480322, 10480332, 10480336, 10480351, 10480353, 10480354, 10480361, 10480362, 10480378, 10480453, 15757624, 15760058, 15768315, 15768315, 19244782, 19244787, 19244794, Honda 06311-P8C-505RM, 31100-P8A-A01, 31100-P8A-A02, 31100-P8C-A02, 31100-P8C-A02RM, Isuzu 8104634070, 8104636510, 8104640840, 8104640850; Lester 8155-3, 8156-3, 8158-5, 8160-11, 8160-5, 8160-7, 8190-11, 8197-7, 8199-2, 8200-11, 8206-5, 8208-2, 8216-5, 8220, 8222-3, 8223-7, 8224-11, 8227-5, 8231-5, 8233-7, 8240-7, 8246-5, 8270-7, 8272-11, 8275-2, 8276-7, 8279, 8283, 8297
