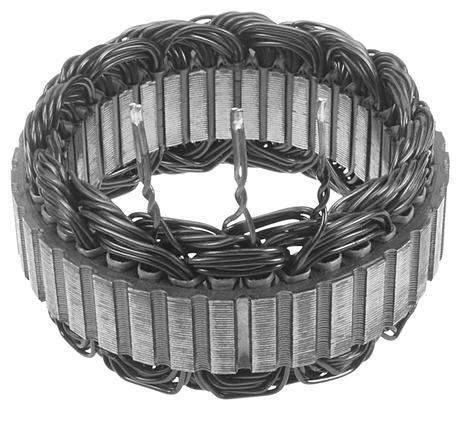

27142 - Stator, 102-105 Amp Output, Delco CS130D and AD230

Stator For Delco CS130D and AD230 Series Alternators

Dimensions: 97mm ID x 130mm Mounting OD, 27mm Thick Lamination Stack

Notes: *CS130D, 102 amp stators are not interchangeable with CS130D 105 amp stators due to different thickness of lam stacks. For CS130D 105 amp applications use 27137.

Features: 100% New

Used On: Buick (1999-2004) , Cadillac (2002-2004) , Chevrolet (1997-2006) , GMC (1999-2006) , Honda (2003-2003) , Oldsmobile (1997-2001) , Pontiac (1998-2004)

Replaces:

DELCO

10453510, 10486523, 10490885, 10494740, 19050237

Unit Nos:

Delco

10327068, 10327069, 10333165, 10333166, 10442782, 10442783, 10447094, 10447095, 10447096, 10447097, 10463839, 10463840, 10464070, 10464097, 10464402, 10464407, 10464412, 10464413, 10464414, 10464423, 10464425, 10464427, 10464429, 10464429, 10464439, 10464449, 10464450, 10464455, 10464459, 10464478, 10464481, 10464483, 10464484, 10464490, 10464490, 10464491, 10480184, 10480207, 10480229, 10480241, 10480271, 10480292, 10480299, 10480308, 10480317, 10480318, 10480320, 10480326, 10480330, 10480331, 10480342, 10480343, 10480352, 10480388, 10480411, 10480476, 10480479, 10480497, 15087020, 15087021, 15087023, 15755616, 15755616W, 15768829, 15769252, 25744164W

GM

19244727, 25744164

Honda

31100-RCA-A01, 31100-RCA-A01RM

Lester

8228-7, 8229-7, 8230-7, 8234-5, 8238, 8242-5, 8245, 8247, 8249-7, 8271-7, 8273, 8287, 8291, 8296, 8490-3, 8490-9, 8491-3
