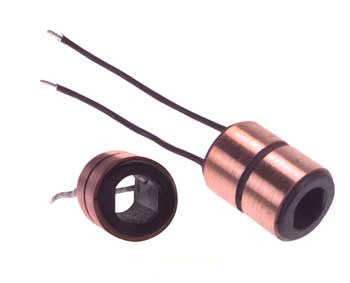

# 281856 - Rotor Slip Ring, Delco CS130D Series Alternators

# 281856 - Rotor Slip Ring, Delco CS130D Series Alternators

For: Delco CS130D Series Alternators

Dimensions: 7.1mm ID x 14.3mm OD

281856 is used on most CS130D rotors w/ 11-blade or 16-blade black-color plastic fan.

For late style CS130D rotors with 16-blade tan-color plastic fan use 281860 slip ring.

281856 is similar to 2818562 except 2818562 has the lead insulation pre-stripped for installation.

Also See: 281860, 491120

Used On: Acura (1997-1999) , Buick (1999-2001) , Chevrolet (1997-2005) , Crusader (2001-2004) , Daewoo (1999-2002) , Daewoo - Europe (1997-2005) , GMC (1998-2005) , Honda (1998-2002) , Hyster (2001-2006) , Isuzu (1998-2001) , Marine Power (1997-2008) , Mercruiser (1998-2002) , Oldsmobile (1997-2003) , Opel - Europe (1992-2004) , Pleasurecraft (2001-2004) , Pontiac (1998-2003) , Porsche (2003-2006) , Volkswagen (2002-2004)

Replaces: Delco 10475750, 10475751

Unit Nos: AUDIVW 07C-903-021K, 07D-903-021; DAEWOO 219232, 96206871, 96341300; DELCO 10447094, 10447096, 10463963, 10464070, 10464090, 10464097, 10464396, 10464402, 10464407, 10464412, 10464413, 10464414, 10464415, 10464416, 10464417, 10464420, 10464425, 10464429, 10464449, 10464480, 10464485, 10464487, 10464488, 10464492, 10475748, 10479384, 10479923, 10480228, 10480292, 10480298, 10480299, 10480308, 10480317, 10480330, 10480331, 10480342, 10480343, 10480344, 10480346, 10480348, 10480352, 10480354, 10480377, 10480453, 10480480, 10480485, 10480500, 10480546, 10484420, 10486544, 10486582, 10486588, 10486594, 10488937, 10492396, 15087022, 15087024, 15744913, 15768315, 19020601, 19020606, 19020608, 19020614, 19020615, 19020616, 19020617, 19052295, 19244752, 25744163, 25744165A; DELCOEUROP 3493923; GM 19244743, 25744165, 96206871; HONDA 31100-P8A-A01, 31100-P8A-A02, 31100-P8C-A02, 31100-P8C-A02RM; INDMAR 575010, 575011; ISUZU 8104799230; MALLORY 9-19107, 9-19108, 9-19110; MARINEPWR 4711210, 471200, 471201, 471210; MERCMARINE 862031, 862031T, 862031T1; OPEL 10480409, 1204145, 3493823, 3493824, 6204000, 6204002, 6204151, 6204196, 90356897, 90443929, 93175788, 93175815, 93175963, 93181383, 9512800; PLEASCRAFT RA097007, RA097007A, RA097007B, RA097007L; PORSCHE 948-603-015-01, 948-603-015-02, 948-603-015-03; PRESTOLITE 20115012TBA, 20115014TBA, 20115016TBA; VAUXHALL R1530052; LESTER 11059, 11060, 8220, 8224-11, 8230-7, 8233-7, 8234-5, 8236, 8239, 8242-5, 8243-5, 8246-5, 8249-7, 8277, 8281, 8286, 8460, 8463, 8466, 8467, 8468, 8469, 8495-3, 8496-9
