# 51138 - Starter Frame, DE, Nose Cone, For Delco 10MT, SD300 Series DD

51138 - Starter Frame, DE, Nose Cone, For Delco 10MT, SD300 Series DD

For: Delco 10MT, SD300 Series DD Starters

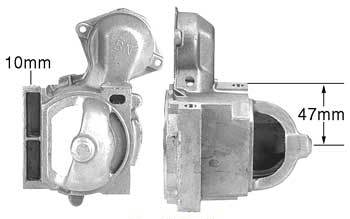

• Mounting Ear-1 Hole Size: 10mm
• Mounting Pad to Bushing Center: 47mm
• Mounting Ear-2 Hole Size: 10mm

Notes: With large drive opening. Similar to 51-117 except 51-117 w/ small drive opening. Similar to 51-120 except 51-120 w/ 3/8 in. mtg. holes.

Also See: 511382

Used On: Buick (1992-1993) , Cadillac (1990-1992) , Chevrolet (1982-1994) , GMC (1982-1994) , Oldsmobile (1980-1992) , Penn Yan (1970-1976) , Pontiac (1980-1980)

Replaces: Delco 10485827, 1984097

Unit Nos: Delco 10455301, 10455305, 10455308, 10455343, 10496873, 10496875, 1108442, 1108448, 19136132, 1988603, 1988714, 1998226, 1998238, 1998241, 1998242, 1998243, 1998244, 1998246, 1998247, 1998253, 1998436, 1998437, 1998439, 1998440, 1998441, 1998469, 1998547, 1998558, 1998559, 1998561, 1998562, 1998574, 1998579, 1998583, 1998584, 1998590, 1998651, 88863064; Prestolite 20513530TBA, Lester 3508M, 3510M, 6439
