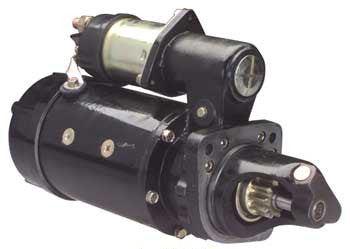

# 6269N (22207DR1) - Starter, 24 Volt, CW, 10-Tooth Pinion, For Delco 37MT DD

6269N - Starter, 24 Volt, CW, 10-Tooth Pinion, For Delco 37MT DD

For: Delco 37MT DD

Notes: 41MT solenoid, 100% tested for coil strength, voltage drop across contacts and 'reserve burnoff' on the contacts. 100% computerized load tested

• 100% New
• Heavy duty positive engagement solution for 37MT starters
• Eliminates the milling and stop ring & collar failure common on the 37MT design
• Solenoid positioned at 322 degrees.
• 41MT positive engagement drive
• 41MT armature with heat treated shaft and welded steel-core riserless commutator
• Varnish dipped field coils
• Ductile iron D.E. housing
• Painted gloss black with zinc plated hardware

Also See: 54-170, 61-144, 62-1600, 6832N

Used On: Case (1983-1990), Dresser (1984-1992), Samsung (1992-1998)

Replaces: Case A169694, Cummins 3675116RX, 3908594, Delco 10479108, 1990499, 1993903, 1993954, Lester 6269, 6434, 6459
