# 66100 - Starter Solenoid for Delco 5MT, 10MT, 27MT, SD200, SD250, SD300, 15GR Series Starters - 12 Volt, 4-Terminal
# 66100 - Starter Solenoid for Delco 5MT, 10MT, 27MT, SD200, SD250, SD300, 15GR Series Starters - 12 Volt, 4-Terminal
SKU:66100
Regular price
$39.95 USD
Regular price
Sale price
$39.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

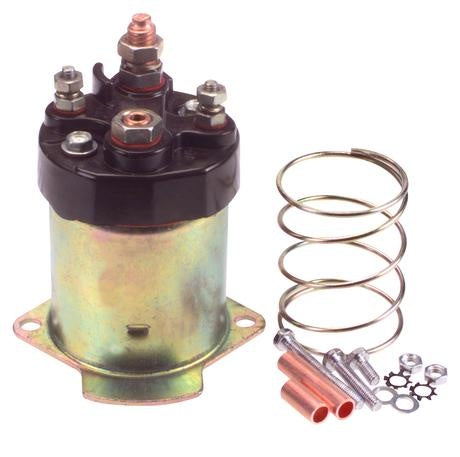

66100, Starter Solenoid 12 Volt, 4-Terminal
For: Delco 5MT, 10MT, 27MT, SD200, SD250, SD300 Series DD; 15GR Series OSGR Starters
Used On: (1996-81) AMC, Buick, Cadillac, Chevrolet, Ford, GMC, Isuzu, Jeep, Oldsmobile, Pontiac
Replaces: Delco 1114531, D984
Lester Nos: 3300, 3507, 3508, 3508M, 3510M, 3533, 3552, 3553, 3554, 3556, 3564, 3565, 3569, 3571, 3635, 3664, 3686, 3733, 3741, 3742, 3764, 3800, 3838, 4038, 4174, 4263, 6303, 6304, 6305, 6307, 6308, 6309, 6310, 6311, 6312, 6313, 6315, 6316, 6318, 6319, 6324, 6327, 6330, 6339, 6413
Dimensions:
Notes: With 20mm battery terminal length.
Features:
For: Delco 5MT, 10MT, 27MT, SD200, SD250, SD300 Series DD; 15GR Series OSGR Starters
Used On: (1996-81) AMC, Buick, Cadillac, Chevrolet, Ford, GMC, Isuzu, Jeep, Oldsmobile, Pontiac
Replaces: Delco 1114531, D984
Lester Nos: 3300, 3507, 3508, 3508M, 3510M, 3533, 3552, 3553, 3554, 3556, 3564, 3565, 3569, 3571, 3635, 3664, 3686, 3733, 3741, 3742, 3764, 3800, 3838, 4038, 4174, 4263, 6303, 6304, 6305, 6307, 6308, 6309, 6310, 6311, 6312, 6313, 6315, 6316, 6318, 6319, 6324, 6327, 6330, 6339, 6413
Dimensions:
- Batt. Term. M10 x 1.5
- Motor Term. 3/8-16 (w/ 10-32 Int. Thd.)
- Switch Term. M5 x 0.8 Post (RH)
- Relay Term. M5 x 0.8 Post (LH)
Notes: With 20mm battery terminal length.
Features:
- Best Value
- Cadmium-plated movable contact to help prevent contacts from sticking. Ideal for diesel applications
- Terminal extension kit & plunger spring included
- Copper-wound coil with same number of turns as OE
- Brown hi-temp cap
- Individually boxed
