66114 - Solenoid Switch, 24 Volt, 4-Terminal, Insulated Base, For Delco 42MT Series DD Starters

66114 - Solenoid Switch, 24 Volt, 4-Terminal, Insulated Base, For Delco 42MT Series DD Starters

For: Delco 42MT Series DD Starters

Dimensions:

• Battery Terminal 1/2-13
• Motor Terminal 1/2-13
• Switch Terminal 10-32 Post (RH)
• Ground Terminal 10-32 Post (LH)

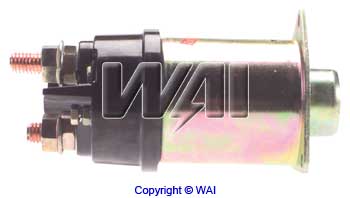

Notes: Representative image, actual item may vary

Features:

• 100% New
• Silver stationary contacts

Also See: 66-114-1, 66-114-SL

Used On: Allis Chalmers (1985-1986), Case (1980-1996), Caterpillar Ag. & Ind. (1979-2000), Champion (1985-2006), Clark (1985-1986), Consolidated Diesel (1991-1992), Cummins Engines (1983-1993), Dresser (1984-2000), Fiat-Allis (1984-1995), Grove Mfg. (1985-1987), Hyundai (1996-2006), John Deere (1984-1985), Kenworth (1984-1994), Kobelco (1995-1998), Link-Belt (1988-2003), Lister-Petter (1986-1988), Mack (1984-2009), Perkins (1986-1986), Prentice (1997-2002), Tanguay (1985-2002), Timberjack (1995-1995), Volvo (1983-2006), Western Star HD (1986-2000), White Industrial (1984-1984)

Replaces: Caterpillar 7T-0258, 7X-1955, 9X-9511, Cummins 3604650RX, Delco 1115595, 1115601, 1115608, D901A, D912A, White V1117554

Unit Nos: Case 260493C91, 313979R93, 489716C91, 527888C91, 989969C91, A186270, A187568, L118276, Caterpillar 0R2186, 0R2186, 0R2187, 0R2190, 0R2192, 0R4259, 104-7041, 104-7042, 106-8551, 106-8554, 10R0400, 3T2579, 3T2579, 3T2764, 3T4586, 3T4586, 4N0957, 4N1062, 4N3182, 4N3182, 6N1889, 6V5227, 8C3645, 8C3651, 8C3651, 8C4090, 8H1913, 8N2447, 9G4339, Cummins 135160, 135161, 135163, 173006, 173007, 3011895, 3011895, 3604321RX, 3604484RX, 3604484RX, 3604784RX, 3604784RX, 3675191RX, 3902661, 3902661, 3907821, 3907821, 3910646, 3910646, 3938502, 3938502, 555241, Delco 10461024, 10461026, 10461027, 10461027, 10461030, 10461031, 10461043, 10461080, 10461128, 10461134, 10461134, 10461136, 10461136, 10461136, 10461136, 10461137, 10461141, 10461184, 10461259, 10461338, 10461341, 10461345, 10461357, 10461358, 10461358, 10461396, 10461410, 10461412, 10461412, 10461412, 10478820, 10478839, 10478945, 10478981, 10479012, 10479022, 10479067, 10479115, 10479115, 10479118, 10479130, 10479136, 10479136, 10479142, 10479193, 10479224, 10479225, 10479264, 10479290, 12309841, 1990350, 1990357, 1990359, 1990360, 1990364, 1990366, 1990367, 1990368, 1990371, 1990373, 1990378, 1990382, 1990384, 1990389, 1990402, 1990409, 1990410, 1990413, 1990415, 1990432, 1990433, 1990434, 1990435, 1990436, 1990447, 1990453, 1990454, 1990455, 1990456, 1990457, 1990459, 1990462, 1990463, 1990464, 1990472, 1990474, 1990485, 1990493, 1990497, 1993784, 1993786, 1993788, 1993796, 1993797, 1993801, 1993802, 1993804, 1993808, 1993809, 1993810, 1993812, 1993814, 1993815, 1993826, 1993828, 1993833, 1993835, 1993923, 1993929, 1993978, 1993987, 1993991, 1993993, Detroit Diesel R0461184, Dresser Engine Mfr 1034953H91, 1034953H91, 1219523H91, Euclid E-821126X, E-821131X, E-821131X, Ford F6HT-11001-EA, F6HZ-11002-EA, IHC, Navistar 260493C91, 313973R93, 313979R93, 489716C91, 527888C91, 989969C91, John Deere RE28782, Letrika (Iskra) 11.131.905, 11.131.905, 11.131.905, 11.131.905, 11.131.905, 11.131.905, 11.131.907, 11.131.907, 11.131.907, 11.131.907, 11.131.907, 11.131.907, Prestolite MS1-401A, MS1-401A, MS1-401A, MS1-401A, MS1-401A, MS1-401A, MS1-401A, MS1-401A, MS1-410A, MS1-410A, MS1-410A, MS1-410A, MS1-410A, MS1-410A, MS1-410A, Western Star 820013433, White V1114251, V1115303, Lester 3948, 6247, 6263, 6264, 6355, 6360, 6361, 6363, 6369, 6378, 6381, 6538, 6552, 6553, 6556, 6569, 6619, 6624, 6625, 6626, 6627, 6629, 6639, 6681, 6684, 6779, 6780
