# 8268602 - Pump Motor, Replaces Prestolite

# 8268602 - Pump Motor, Replaces Prestolite

8268602

$119.95 USD
$119.95 USD
Sale Sold out
Shipping calculated at checkout.

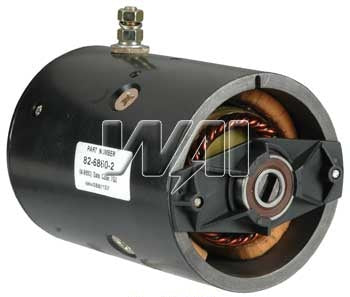

Motor - Pump 12 Volt, CCW, Slotted Shaft

Used On: Cessna, Monarch Hydraulics, MTE Hydraulics, Tommy Lifts

Replaces: Prestolite 46-948, 46-2220, 46-2777, 46-2782, 46-4166, MHN-4001, MHN-4001A, MHN-4001B, MHN-4001S, MHN-4003, MHN-4005, MHN-4005A, MUE-6001, MUE-6107, MUE-6107S, MUP-6201, MUP-6201S

Ref. No. W-9993

Dimensions:
4.5 in. Dia. Field Case
1) 5/16-24 Terminal Post

Notes:
Thru bolts at 3:00 & 9:00 positions.
Additional 1/4-20 switch mtg. holes in field case for broader coverage.
Single ball bearing.
For double ball bearing version used 82-6860-1 or 82-6860-3

Features:
100% New, TOP QUALITY, NO CORE CHARGE
Later style, 4-field coils
Single ball bearing

Reference No. 82-6860-2
note: the front plastic retainer is for shipping only and must be removed before installation
