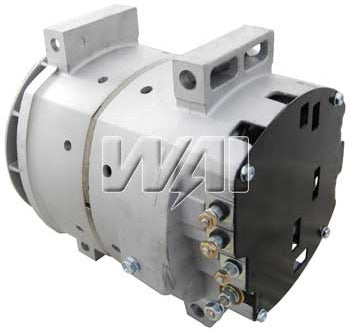

# 8609N - Alternator, 140 Amp,12 Volt, Bi-Directional, Negative. Ground.This 35SI Mounts lIke a PAD MOUNT 34SI, With Improved Cooling & Higher Amp
# 8609N - Alternator, 140 Amp,12 Volt, Bi-Directional, Negative. Ground.This 35SI Mounts lIke a PAD MOUNT 34SI, With Improved Cooling & Higher Amp
SKU:8609N
Regular price
$262.92 USD
Regular price
Sale price
$262.92 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| 8609N - Alternator, For : Delco type 35SI HP Series |
| This 35SI Mounts lIke a PAD MOUNT 34SI, With Improved Cooling Built in, and Holes Cut in the Housings for Improved Air Flow. This 35SI Alternator is Upgraded to the "HP" Series From Delco, Which Means It is Designed to Consistently Deliver 140 Amps in Under Hood Temperatures as High as 105C. This is Done Using Radiant Vents, High Efficiency Stator Windings, an Improved Rotor Design, an Oversized Rectifier Bridge, and a Vented Back Plate Over the Electronics. This is Especially Needed in the EGR- and ACERT-TYPE Applications. This is According to Delco Literature. |
| Notes: Negative Ground Includes Remote Sense Terminal Brushless |
| Features: 100% New WAI-Transpo premium rectifier & regulator Premium, hi-temperature WBD 6305 bearing Hi-temperature class-H windings Precision CNC machined castings OE performance output curve |
| Also See: 8096N, 8614N |
| Used On: Freightliner (1999-2007) , International (1999-2007) , Kenworth (1999-2007) , Mack (1999-2007) , Peterbilt (1999-2007) , Sterling (1999-2007) , Volvo (1997-2007) , Western Star (1999-2007) |
| Replaces: CUMMINS 3675218RX , 3675221RX , DELCO 10459279, 10459284 , 10459288 , 10459289 , 10459449, 10459608 , 10459611 , 10459614 , 19011176 , 19011187 , 19011202 , 19011215 , 19011252 , 19011253 , 19011258 , 19011262 , 19011267 , 19011268 , 19011272 , 19011273, 8600066 , 8700001 , 8700002 , 8700004 , 8700007 , 8700018 , 8700030 |
| Lester Nos: 8095, 8097, 8579, 8587, 8595, 8596, 8597, 8609 |
| Delco | 8600066 , 8700018 , 10459279 , 10459284 , 19011176 , 19011215 , 10459278 , 10459285 , 19011177 , 19011216 , 10459288 , 10459289 , 19011187 ,10459449 , 19011202 , 10459614 , 19011262 ,10459608 , 19011252 , 19011267 , 19011272 , 8700001 , 8700030 , 10459611 , 19011253 , 19011268 , 19011273 , 8700002 , 8700007 , 19011258 , 8700004 |
| Dixie Electric | 101-35114 , A-1721 , A-1552 , A-1553 , A-1659 , A-1658, A-1696 , A-1694 , A-1695 , A-1739 |
| Elpar Industries | 0211036120 , 0211036169 , 021103643A |
| WAI New | 8609N , 8096N |
| WAI Old | 1-2562-00DR , 1-2304-00DR , 1-2304-00DR-1 , 42773 , 42795 , 1-2681-00DR , 1-2572-00DR |
| Wilson Heavy Duty | 90-01-4513 , 90-01-4328 , 90-01-4329 , 90-01-4344, 90-01-4432 , 90-01-4474 ,90-01-4495 , 90-01-4459 , 90-01-4473 |
| Wilson New | 90-01-4513N , 90-01-4328N , 90-01-4329N , 90-01-4344N , 90-01-4473N |
| AC-Delco | 321-763 , 321-764 , 321-758 |
| Cummins | 3675218RX , 3675219RX , 3675221RX |
| Whatcom APPTRAK | 46482 , 46492 |
| J & N | 400-12130 , 400-12130R , 400-12173 , 400-12191R |
| PIC Old | 240-4075 |
| Freightliner Heavy Duty | Argosy Caterpillar C-15 2000-2003 Argosy Caterpillar C-16 2003 Argosy Cummins ISX 2000-2003 Argosy DD 60 Series 2000-2003 Argosy Mercedes MBE4000 2003 C112 Century Class Caterpillar C-15 2001-2007 C112 Century Class Cummins ISM 2001-2004 C112 Century Class Cummins ISX 2001-2003 C112 Century Class DD 60 Series 1999-2007 C112 Century Class Mercedes MBE4000 2001-2007 C120 Century Class Caterpillar C-15 2001-2007 C120 Century Class Cummins ISM 2001-2004 C120 Century Class Cummins ISX 2001-2003 C120 Century Class DD 60 Series 1999-2007 C120 Century Class Mercedes MBE4000 2001-2007 Classic Caterpillar C-15 2001-2007 Classic Cummins ISM 2001-2004 Classic Cummins ISX 2001-2003 Classic DD 60 Series 1999-2007 Classic Mercedes MBE4000 2001-2007 Columbia Caterpillar C-15 2001-2007 Columbia Cummins ISM 2001-2004 Columbia Cummins ISX 2001-2003 Columbia DD 60 Series 2001-2007 Columbia Mercedes MBE4000 2001-2007 Coronado Caterpillar C-15 2003-2007 Coronado DD 60 Series 2003-2007 FL 106 DD 50 Series 1999-2003 FL, FLC 112 / 120 Cummins ISM 2000-2003 FL, FLC 112 / 120 DD 60 Series 1999-2003 FL, FLC 112 / 120 Mercedes MBE4000 2002-2003 FLD 112 / 120 Caterpillar C-13 2001-2005 FLD 112 / 120 Caterpillar C-15 2001-2007 FLD 112 / 120 Cummins ISM 2001-2003 FLD 112 / 120 Cummins N14 2004-2007 FLD 112 / 120 DD 60 Series 1999-2007 FLD 112 / 120 Mercedes MBE4000 2001-2007 M2 Caterpillar C-13 2003-2007 M2 Caterpillar C-15 2003-2007 M2 Mercedes MBE4000 2003-2007 |
| International Heavy Duty | 5000-5900 Series Severe Service Caterpillar C-13 2003-2007 5000-5900 Series Severe Service Caterpillar C-15 2000-2007 5000-5900 Series Severe Service Cummins ISM 2000-2007 5000-5900 Series Severe Service Cummins ISX 2000-2007 7100-7700 Severe Service Caterpillar C-11 2005-2007 7100-7700 Severe Service Caterpillar C-13 2005-2007 7100-7700 Severe Service Caterpillar C-15 2005-2007 7100-7700 Severe Service Cummins ISM 2003-2007 7100-7700 Severe Service Cummins ISX 2003-2007 8100-8600 Heavy-Duty Caterpillar C-12 2003-2005 8100-8600 Heavy-Duty Caterpillar C-13 2005-2007 8100-8600 Heavy-Duty Cummins ISM 2001-2007 9100-9900 Heavy-Duty Caterpillar C-11 2005-2007 9100-9900 Heavy-Duty Caterpillar C-13 2005-2007 9100-9900 Heavy-Duty Caterpillar C-15 2000-2007 9100-9900 Heavy-Duty Caterpillar C-16 2000-2003 9100-9900 Heavy-Duty Cummins ISM 2001-2007 9100-9900 Heavy-Duty Cummins ISX 2001-2007 9100-9900 Heavy-Duty DD 60 Series 1999-2003 |
| Kenworth Heavy Duty | C500 Caterpillar C-11 2005-2007 C500 Caterpillar C-13 2005-2007 C500 Caterpillar C-15 2000-2007 C500 Caterpillar C-16 2002-2003 C500 Cummins ISM 2001-2007 C500 Cummins ISX 2000-2007 C500 DD 60 Series 1999-2003 T2000 Caterpillar C-13 2004-2007 T2000 Caterpillar C-15 2001-2007 T2000 Cummins ISX 2001-2007 T2000 DD 60 Series 1999-2003 T600 Caterpillar C-11 2005-2007 T600 Caterpillar C-13 2004-2007 T600 Caterpillar C-15 2001-2007 T600 Caterpillar C-16 2002-2003 T600 DD 60 Series 1999-2003 T800 Caterpillar C-11 2005-2007 T800 Caterpillar C-13 2004-2007 T800 Caterpillar C-15 2001-2007 T800 Caterpillar C-16 2002-2003 T800 DD 60 Series 1999-2003 W900 Caterpillar C-13 2004-2007 W900 Caterpillar C-15 2001-2007 W900 Caterpillar C-16 2000-2003 W900 Cummins ISX 2001-2007 W900 DD 60 Series 1999-2003 |
| Peterbilt Heavy Duty | 357 Caterpillar C-11 2005-2007 357 Caterpillar C-13 2004-2007 357 Caterpillar C-15 2001-2007 357 Cummins ISM 2001-2007 357 Cummins ISX 2001-2007 357 DD 60 Series 1999 359 Caterpillar C-15 2001-2007 362 DD 60 Series 1999 375 DD 60 Series 1999 377 DD 60 Series 1999 378 Caterpillar C-11 2005-2007 378 Caterpillar C-13 2004-2007 378 Caterpillar C-15 2001-2007 378 Cummins ISM 2001-2007 378 Cummins ISX 2001-2007 378 DD 60 Series 1999-2001 379 Caterpillar C-13 2004-2007 379 Caterpillar C-15 2001-2007 379 Caterpillar C-16 2000-2003 379 Cummins ISM 2001-2007 379 Cummins ISX 2001-2007 379 DD 60 Series 1999-2003 385 Caterpillar C-11 2005-2007 385 Caterpillar C-13 2004-2007 385 Caterpillar C-15 2001-2007 385 Cummins ISM 2001-2007 386 Caterpillar C-13 2006-2007 386 Caterpillar C-15 2006-2007 386 Cummins ISX 2006-2007 387 Caterpillar C-13 2004-2007 387 Caterpillar C-15 2000-2007 387 Cummins ISM 2000-2007 387 Cummins ISX 2000-2007 389 Caterpillar C-15 2004-2007 389 Cummins ISX 2004-2007 |
| Sterling Heavy Duty | A-Line A9500 / AT9500 Caterpillar C-11 2004-2007 A-Line A9500 / AT9500 Caterpillar C-13 2004-2007 A-Line A9500 / AT9500 Caterpillar C-15 2001-2007 A-Line A9500 / AT9500 Caterpillar C-16 2001-2003 A-Line A9500 / AT9500 Cummins ISM 2001-2003 A-Line A9500 / AT9500 Cummins ISX 2001-2003 A-Line A9500 / AT9500 DD 60 Series 1999-2007 A-Line A9500 / AT9500 Mercedes MBE4000 2003-2007 Condor Cummins 8.9L ISL 2001-2005 Condor Cummins ISM 2001-2005 Condor Cummins ISX 2001-2005 L-Line 7500 / 8000 / 8500 / 9500 Caterpillar C-11 2005-2007 L-Line 7500 / 8000 / 8500 / 9500 Caterpillar C-13 2005-2007 L-Line 7500 / 8000 / 8500 / 9500 Caterpillar C-15 2001-2007 L-Line 7500 / 8000 / 8500 / 9500 Caterpillar C-16 2003 L-Line 7500 / 8000 / 8500 / 9500 DD 60 Series 2001-2007 L-Line 7500 / 8000 / 8500 / 9500 Mercedes MBE4000 2003-2007 Silver Star Series DD 60 Series 1999-2001 |
| Volvo Heavy Duty | VHD Series Cummins ISM 2001-2003 VNL Series Cummins ISX 2000-2007 VNL Series DD 60 Series 2000-2003 VNL Series Volvo D16 2005-2007 VNM Series Cummins ISM 1997-2003 VNM Series DD 60 Series 2000-2003 VT Series Cummins ISX 2004-2007 VT Series Volvo D16 2005-2007 |
| Volvo Medium Duty | WA / WC / WG / WH / WI / WX Series Cummins ISM 1997-2001 WA / WC / WG / WH / WI / WX Series DD 60 Series 2000-2003 |
| Western Star Heavy Duty | All Models (By Engine) Caterpillar C-13 2004-2007 All Models (By Engine) Caterpillar C-15 2001-2007 All Models (By Engine) Cummins ISM 2001-2003 All Models (By Engine) Cummins ISX 2001-2003 All Models (By Engine) DD 60 Series 1999-2003 All Models (By Engine) Mercedes MBE4000 2002-2007 |
