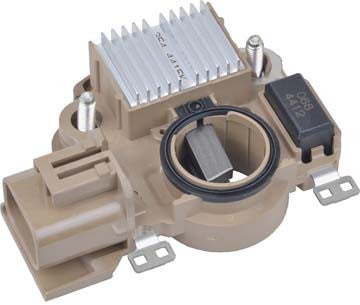

# A866X35472 - Regulator, Original Equipment, 12V, 14.5 Set Point, A-Circuit, For Mitsubishi Alternators

A866X35472 - Regulator, Original Equipment, 12V, 14.5 Set Point, A-Circuit, For Mitsubishi Alternators

Description: Regulator, Electronic

Notes: IM345 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators. See VRC101-26 regulator test adapter. To Avoid Regulator Damage Consult Your Test Equipment Manufacturer for the Proper Procedure for Testing P-D Type Regulators

OEM(s): Mitsubishi

Voltage: 12

Set Point: 14.5

Terminal ID: Phase-Driver

Polarity: Negative

Includes Brush Holder?: Yes

Activation: Ignition

Adjustable?: No

Circuit Type: A-Circuit

Includes Rectifier?: No

Includes Tolerance Ring?: Yes

Notes: 24mm Brush Ring

Diagram(s):

For: Mitsubishi ED/IF Alternators

Also See: IMR10047, IMR10051, IMR10081, IMR8566, TRI345, VRC101-26

Used On: Kia (1997-1997) , Mazda (1997-2009) , Mazda - China (2006-2010) , Mazda - Europe (1997-2010)

Replaces: Mazda Z599-18-W70, Mitsubishi 345, A866X34572, A866X35472

Unit Nos: Ford A4A2FB0191; Kia MZ599-18-300A; Mazda FP34-18-300, FP34-18-300A, FP34-18-300B, FP34-18-300C, FP34-18-300R00, LF1F-18-300, LF1F-18-300R00, LF50-18-300, LF50-18-300A, LF50-18-300R0A, LF50-18-400, N3H1-18-300, N3H1-18-300A, N3H1-18-300B, N3H1-18-300R0A, Z599-18-300A, Z599-18-300C, Z599-18-300R, Z599-18-300R, Z5A1-18-300; Mitsubishi A002TB0091, A002TB0091A, A002TB0091B, A002TB0191, A002TB0191A, A002TB0191B, A002TB0191C, A002TB1091A, A002TB1091B, A002TB2391, A003TG1291, A003TG1291A, A003TG1291B, A003TG1391, A003TG1391A, A003TG4791, Lester 11008, 11025, 11174, 13718, 13719
