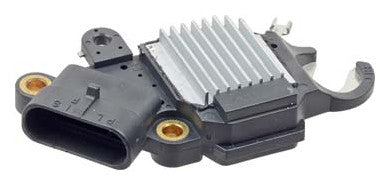

# D235SEL - Voltage Regulator, Self-Exciting, (one wire) 12 Volt, 14.6 V set point Delphi AD230, AD237, AD244, can fit DR44 with work

# D235SEL - Self-Exciting Voltage Regulator, 12 Volt, B-Circuit, D-F-L-D Terminals, 14.6 VOLT set point, Fits Delco AD230, AD237, AD244 Series Alternators. CAN ALSO be used in THE DR44G AND DR37 ALTERNATORS WITH SLIGHT MODIFICATION TO THE ALTERNATOR
B+ connection made at rectifier B+ stud w/screw or press fit spacer

• Redesigned Mount to Address OE Durability Issues (B+ Connection at B+ Stud)
• Used with Rectifiers with Threaded or Floating Battery Stud Spacers (Use OE Style with Press Fit Spacers)

Also See: D200XHD, D200HD, D200SE

Used On: Buick (2002-2006) , Cadillac (2002-2004) , Chevrolet (1999-2010) , GMC (1999-2006) , Hummer (2003-2005) , Isuzu (2003-2006) , Oldsmobile (1999-2004) , Pontiac (2003-2004) , Saab (2005-2006)

Replaces: Delco 10458199, 10458200, 10483643, 10486311, 10494747, 19051915, 19053013, 19053730, 19054622, 19060319, 19060345, Delco ASVR 10458199, dr44G self exciting voltage voltage regulator.

Unit Nos: DELCO 10311493, 10327068, 10327069, 10333165, 10333166, 10343535, 10346705, 10442782, 10442783, 10464395, 10464405, 10464443, 10464452, 10464453, 10464455, 10464456, 10464468, 10464468, 10464476, 10464476, 10464481, 10464482, 10464482, 10464493, 10480234, 10480285, 10480326, 10480327, 10480341, 10480383, 10480388, 10480390, 10480476, 15062413, 15162839, 15226003, 15744910, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15755616, 15755616W, 15768829, 15768830, 19151920, 19244731, 19244746, 19244750, 25744162; GM 19151912, 19151921, 19151921, 19244727; ISUZU 8104644680, 8104644760, 8152260030; SAAB 15-22-6003; LESTER 8237, 8241, 8247, 8273, 8274, 8284, 8287, 8290, 8291, 8292, 8293

Ref Nos: D235SEL, 230-12217
