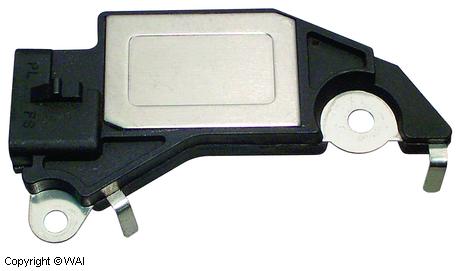

# D425XHD (35124) - Extra Heavy Duty Voltage Regulator For Delco CS130 and CS144 Series Alternators - B-Circuit, P-L-I-S, 14.2 Volt Set Point

D425XHD (35124) - Extra Heavy Duty Voltage Regulator - 12 Volt, B-Circuit, P-L-I-S Terminals, 14.2 Volt Set Point, 2.5s LRC (Load Response Control)

For: Delco CS130 and CS144 Series Alternators

Used On: (1999-89) Chevrolet, GMC; Chevrolet Truck, Freightliner, GMC Truck

Replaces: Delco 1116425, 19009724, D683 (stamped 125, 425)

Unit Nos: Delco 1101478, 1101480, 1101482, 1101561, 1101566, 1101571, 1101806, 1101818, 1102605, 1102616, 1102635, 10479852, 10479959, 10479976, 10480022, 10480023, 10480062, 10480088, 10480089, 10480093, 10480098, 10480156, 10480192, 10480267, 10480269; Lester 7678, 7684, 7687, 7903, 7945, 7955, 7959, 7960, 7977, 8166, 8175, 8209, 8221, 8295

Notes: Without temperature compensation

Features:
Transpo Heavy Duty ASVR Design
OE compliant functions & performance: current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
Welded construction - no solder joints for hi-temperature reliability & increased field life
