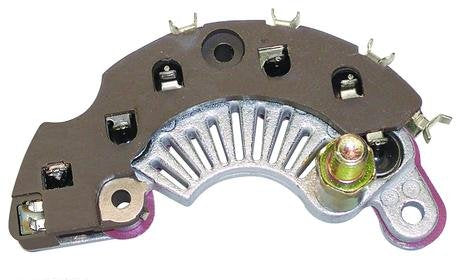

Heavy Duty Bridge Rectifier

DR4200HD (DR4204HD) Bridge Rectifier, Heavy Duty used for high amp alternators

For: Delco CS130D Series Alternators

Used On: (2005-93) Acura, Buick, Chevrolet, GMC, Honda, Oldsmobile, Pontiac

Replaces: Delco 10475757, 10475758, 10492837

Dimensions: M8 x 1.25 Batt. Term.

Notes: Heavy duty version of DR4200.

Features:
Taditel Heavy Duty
50 Amp Heavy Duty Diodes
Welded diode terminations
Hi-temperature lead frame
Patented "Ram-Air" aluminum heat sink
Includes battery terminal

Unit numbers: Delco 10244795, 10437987, 10437988, 10447094, 10447095, 10447096, 10447097, 10449257, 10463390, 10463405, 10463406, 10463407, 10463408, 10463412, 10463440, 10463443, 10463605, 10463630, 10463631, 10463632, 10463638, 10463639, 10463651, 10463652, 10463653, 10463654, 10463685, 10463688, 10463690, 10463838, 10463839, 10463840, 10463842, 10463843, 10463884, 10463940, 10463964, 10463965, 10463966, 10464065, 10464066, 10464067, 10464069, 10464070, 10464071, 10464072, 10464073, 10464074, 10464075, 10464084, 10464085, 10464086, 10464087, 10464090, 10464097, 10464401, 10464402, 10464407, 10464409, 10464410, 10464411, 10464412, 10464413, 10464414, 10464415, 10464416, 10464418, 10464419, 10464420, 10464423, 10464424, 10464425, 10464427, 10464429, 10464431, 10464432, 10464433, 10464437, 10464447, 10464448, 10464449, 10464450, 10464457, 10464462, 10464465, 10479881, 10479981, 10479984, 10480017, 10480043, 10480052, 10480065, 10480071, 10480072, 10480074, 10480076, 10480078, 10480079, 10480119, 10480167, 10480168, 10480170, 10480182, 10480184, 10480187, 10480188, 10480189, 10480190, 10480191, 10480195, 10480196, 10480198, 10480207, 10480217, 10480218, 10480233, 10480235, 10480236, 10480237, 10480238, 10480240, 10480250, 10480251, 10480252, 10480254, 10480259, 10480260, 10480262, 10480263, 10480264, 10480288, 10480289, 10480292, 10480299, 10480301, 10480307, 10480308, 10480317, 10480318, 10480320, 10480321, 10480322, 10480330, 10480331, 10480332, 10480336, 10480342, 10480343, 10480346, 10480348, 10480351, 10480352, 10480353, 10480354, 10480361, 10480362, 10480378, 10480497, 15757624, 15760058, 15768315, 19244735, 19244779, 19244782, 19244786, 19244787, 19244790, 19244792, 19244793, 19244794, 19244796; GM 10463390, 10463405, 10463406, 10463407, 10463408, 10463412, 10463440, 10463443, 10463605, 10463631, 10463632, 10463638, 10463639, 10463651, 10463652, 10463653, 10463654, 10463685, 10463688, 10463690, 10463839, 10463840, 10463842, 10463884, 10463940, 10463964, 10463965, 10464065, 10464069, 10464070, 10464071, 10464072, 10464073, 10464074, 10464075, 10464084, 10464085, 10464086, 10464087, 10464090, 10464097, 10464407, 10464409, 10464411, 10464415, 10464418, 10464419, 10464420, 10464423, 10464424, 10464425, 10464427, 10464429, 10464431, 10464432, 10464433, 10464437, 10464447, 10464448, 10464449, 10464450, 10464458, 10464462, 10464465, 19152043, 19152472, 19244788; Honda 06311-RCA-505RM, 31100-RCA-A01, 31100-RCA-A01RM; Isuzu 8-10463-631-0, 8104634070, 8104636510, 8104640840, 8104640850; Original Reference Number 10480351Y

Lester: 12168, 8155-3, 8156-3, 8158-5, 8160-11, 8160-5, 8160-7, 8190-11, 8197-7, 8199-2, 8200-11, 8206-5, 8206-5-190, 8208-2, 8216-5, 8222-3, 8223-7, 8224-11, 8227-5, 8228-7, 8229-7, 8230-7, 8231-5, 8233-7, 8234-5, 8240-7, 8242-5, 8243-5, 8246-5, 8249-7, 8270-7, 8271-7, 8272-11, 8275-2, 8276-7, 8279, 8283, 8296, 8297

Detailed vehicle Application
