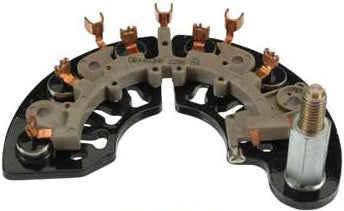

Part # DR4401HD - Bridge Rectifier for AD230, AD 237, AD244 Alternators. Early Design w/ Heavy Duty 50 amp Diodes

Bridge Rectifier
NOTE: Early battery terminals have a long hex nut that is pressed on so you cannot use the later voltage regulators with the "C" battery voltage connection like the D200XHD,You must use a regulator like the D200 which has the battery connection to the regulator and the stator signal as two small spade connectors

For: Delco AD237, AD244 Series 125-150 Amp Alternators Unit Nos: Delco 10480231, 10480234, 10480244, 10480270, 10480285, 10480298, 10480303, 10480327, 10480341, 10480350, 10480357, 10480368, 10480383, 10480390, 10480414, 10480428, 10480480, 10494492, 15056099, 15056100, 15062413, 15087022, 15087024, 15162839, 15744910, 15744913, 15750871, 15754097, 15754097A, 15768830, 15769253, 15769254, 25744162, 25744163, 25744165 Lester Nos: 8235, 8237, 8241, 8244, 8277, 8278, 8286, 8290, 8292

Features:

• Heavy Duty
• 50A press-fit avalanche diodes
• Requires dielectric heat transfer compound between rectifier and housing (not included)
• Crimp-weld diode terminations
• Improved lead frame conductors
• Improved B+ post integrity M8 x 1.25 Batt. Term.

Notes:

• For the same HD version with a M6 Battery Terminal instead of M8 use Part # DR4402HD.
• For Heavier Duty version with a M8 coper plated Battery Terminal and Threaded Hex Collar use D1501200
