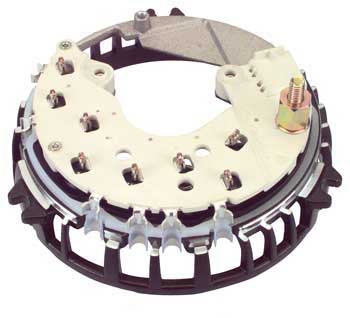

# FR6003 (312131) - Bridge Rectifier For Ford 6G Series Small Case Alternators - 136mm Heat Sink OD

FR6003 (31-213-1) Bridge Rectifier

For: Ford 6G Series Small Case Alternators

Used On: Ford

Replaces: Ford F8WU-10A366-AAIP

Unit Nos: Ford 1S41-10300-BB, 3C3Z-10346-DA, 4C3Z-10346-AA, 98AB-10300-FC, 98AZ-10346-FA; F81U-10300-BA, F81U-10300-BC, F81U-10300-CC, F81U-10300-CD, F81U-10300-DB, F81U-10300-DC, F81U-10300-DD, F81U-10300-EB, F81U-10300-GA; F81Z-10346-BA, F81Z-10346-CA, F81Z-10346-DA, F81Z-10346-EA, F81Z-10346-GA; XF2U-10300-AB, XF2Z-10346-AA; XR3U-10300-AA, XR3U-10300-AB, XR3U-10300-AC; XR3Z-10346-AA, ZR3U-10300-AB

Lester Nos: 7788, 7796, 7797, 7798, 7799, 8252, 8261, 8262

Dimensions: 136mm Heat Sink OD

Notes:

• Similar to FR6013 except location of thru-bolt holes in relation to battery terminal.
• FR6003 is the early design 8-diode rectifier for 6G stators with 2-leads/phase and Y-connection.

Features:

• Transpo
• 40A/300V press-fit diodes, OE validated
• Crimp-weld diode terminations
• Heavy duty copper connections reduce high-amp heat generation
• Pre-tinned terminals improves solder-ability
• Drop-down stator connection improves salvage rate for short-lead stators
