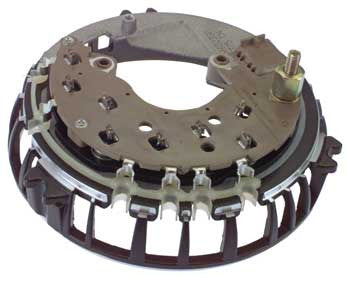

# FR6023SP (31212HD) - Bridge Rectifier for Ford Type 6G Series Large Case Alternators - 50A Diodes, 6mm Battery Post

FR6023SP (31212HD) Bridge Rectifier

For: Ford 6G Series 130-135A Alternators

Used On: (2005-98) Ford, Lincoln, Mercury

Replaces: Ford F8AU-10A366-AAIP

Unit Nos: Ford 3W1U-10300-BB, 3W1Z-10346-BA; F8AU-10300-AB, F8AU-10300-AC, F8AU-10300-AD; F8AZ-10346-AB, F8ZU-10300-AC; XF2U-10300-BC, XF2U-10300-BD; XF2Z-10346-BA; Lester 7795, 8253, 8315

Dimensions: 149mm Heat Sink OD

Notes: *FR6023SP is the early design 8-diode rectifier for 6G stators with 2-leads/phase and Y-connection.

Features:

• Transpo heavy duty for EMV, Police Car, Specialty Hi-Amp Applications
• 6-50A press-fit avalanche diodes, OE validated
• 2-40A/300V press-fit diodes, OE validated
• Crimp-weld diode terminations
• Heavy duty copper connections reduce high-amp heat generation
• Pre-tinned terminals improves solder-ability
• Drop-down stator connection improves salvage rate for short-lead stators
