External Regulator Conversion Kit

External Voltage Regulator kit for 1988 & up Chrysler Corporation Vehicles. Dodge, Chrysler, Jeep since 91

Exclusive Stainless Steel Plug Retaining Clip
When the plug falls out, someone gets stranded, no fun.

Part code (number) :  ERCK   On 2006 and newer vehicles may also require a modified driver

Since 1987 for Dodge and Chrysler vehicles and since 1991 for Jeep Family vehicles have alternators that are controlled by the Alternator Voltage Regulator Control Module inside the vehicle computer.
CAUTION: vehicles after 2005 may also require a modidied driver as well. Email your vehicles year, make, model, engine info for your vehicle and we will tell you

Engine Control Unit (Computer).

The computer is often called the ECC, ECM, EEC, or PCM. Often the alternator voltage regulator, or field control module, in the computer will fail, leaving you with a dead charging system situation where your alternator doesn't work, yet your engine runs just fine. To get your alternator working your entire computer would need to be replaced.

In a bind?, to get your alternator working you can bypass the internal Alternator Voltage Regulator Control inside the computer by using our External Voltage Regulator Conversion kit.

Note: This kit will not put out the check engine light, USE KIT #ERCKFRM which comes with the field replacement module to put out the light.

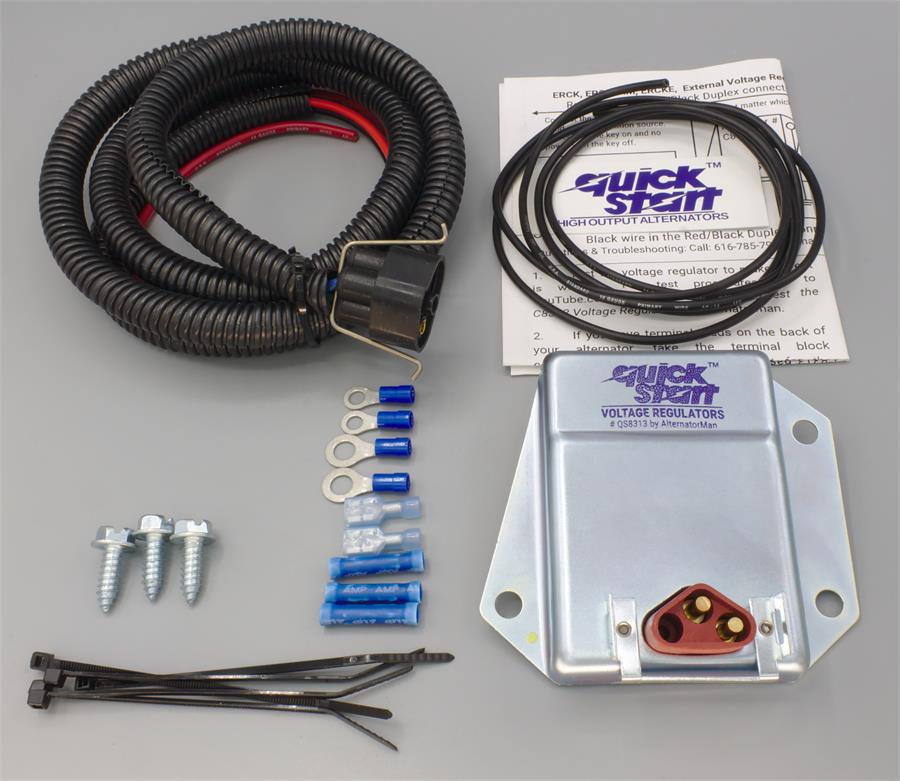

Kit Contents:

Heavy Duty Adjustable Voltage Regulator

Wiring harness to Alternator in split tubing with molded Plug with Retaining Clip to Regulator

14 Gauge Grounding wire from Regulator to Alternator

#10 Insulated Ring terminals 14/16

1/4"  Insulated Ring terminal 14/16

Insulated Butt Splice Connectors

Flat Blade Connectors

Hex Head Regulator Mounting Screws

Regulator Grounding Screw

Zip Ties

Instruction Sheet (English) other language downloaded in PDF format, email

Free email & phone help with purchase

INSTALLERS WANTED:
Auto professional needed to install the Quick Start ECU Voltage Regulator By-pass kit.
Email: INFO@QSALTS.COM  Put "installers wanted" in the subject line.
If you are in need of list of installers use the same email just put " installer needed" in the subject line.
Thank you,
ALTERNATORMAN

Ref: QSERCK , ERCK UPC # 00860007805103
