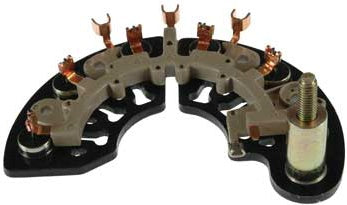

DR4402HD - Bridge Rectifier, Heavy Duty, Delco AD230, AD237, AD244 Series Alternators, Early Design w/ 6mm Battery Post and 50 amp Diodes

Heavy Duty Bridge Rectifier Early Design for Delco Type AD230, AD237, and AD244 Series Alternators

Features:

• 100% New, Transpo Heavy Duty
• 50A press-fit avalanche diodes
• Requires heat transfer compound between rectifier and housing (not included)
• Crimp-weld diode terminations
• M6 battery terminal has unique screw-down collar to accept early & late design regulators

Heavy Duty Bridge Rectifier

For: Delco SD230 Series Alternators

Replaces: Delco 10494503

Unit Nos: DELCO 10311493, 10464395, 10464405, 10464406, 10464408, 10464430, 10464440, 10464441, 10464442, 10464443, 10464452, 10464453, 10464456, 10464460, 10464461, 10464466, 10464467, 10464468, 10464468, 10464476, 10464476, 10464480, 10464482, 10464482, 10464485, 10464486, 10464487, 10464488, 10464489, 10464492, 10480234, 10480244, 10480270, 10480285, 10480298, 10480303, 10480327, 10480341, 10480357, 10480368, 10480383, 10480390, 10480414, 10480428, 10480480, 15056099, 15056100, 15062413, 15087022, 15087024, 15162839, 15226003, 15744910, 15744913, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15768830, 15769253, 15769254, 19244752, 25744162, 25744163, 25744165A, GM, 19151921, 19151921, 19244737, 19244743, 25744165, ISUZU, 8104644680, 8104644760, 8152260030, SAAB, 15-22-6003, LESTER, 8235, 8237, 8241, 8244, 8274, 8277, 8278, 8284, 8286, 8290, 8292, 8292-253, 8492-12, 8492-9, 8493-12, 8493-9, 8494-3, 8495-3, 8496-9

Dimensions: 6mm x 1.0 Battery Terminal

Notes: For version w/ M8 Battery Terminal use DR4403HD

Also See: DR4402, DR4402XHD, DR4403HD

Used On: Buick (1999-2006) , Cadillac (2002-2004) , Chevrolet (1999-2010) , GMC (1999-2006) , Hummer (2003-2005) , Isuzu (2003-2006) , Oldsmobile (1999-2004) , Pontiac (2001-2004) , Saab (2005-2006)
