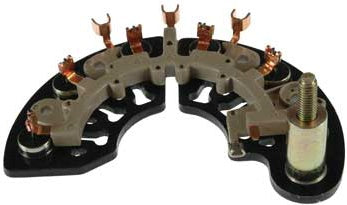

Bridge Rectifier, Heavy Duty Copper Construction, Delco AD230, AD237, AD244 Series Alternators

Heavy Duty Bridge Rectifier Early Design for Delco Type AD230, AD237, and AD244 Series Alternators

For: Delco AD230, AD237, AD244 Series Alternators

Dimensions: M6 x 1.0 Battery Terminal

Notes: For version w/ M8 Battery Terminal use DR4403HD

• 100% New Transpo Heavy Duty
• 80A press-fit avalanche diodes, OE validated
• Copper heat sinks
• High-temperature lead-frame
• Crimp-weld diode terminations
• M6 battery terminal has unique screw-down collar to accept early & late design regulators

Also See: DR4402, DR4402HD

Used On: Buick (1999-2006) , Cadillac (2002-2004) , Chevrolet (1999-2010) , GMC (1999-2006) , Hummer (2003-2005) , Isuzu (2003-2006) , Oldsmobile (1999-2004) , Pontiac (2001-2004) , Saab (2005-2006)

Replaces: DELCO, 10494503

Unit Nos: DELCO 10311493, 10464395, 10464405, 10464406, 10464408, 10464430, 10464440, 10464441, 10464442, 10464443, 10464452, 10464453, 10464456, 10464460, 10464461, 10464466, 10464467, 10464468, 10464468, 10464476, 10464480, 10464482, 10464482, 10464485, 10464486, 10464487, 10464488, 10464489, 10464492, 10480234, 10480244, 10480270, 10480285, 10480298, 10480303, 10480327, 10480341, 10480357, 10480368, 10480383, 10480390, 10480414, 10480428, 10480480, 15056099, 15056100, 15062413, 15087022, 15087024, 15162839, 15744910, 15744913, 15750871, 15754097, 15754097A, 15754097W, 15768830, 15769253, 15769254, 19244752, 25744162, 25744163, 25744165A, GM, 19151921, 19244737, 19244743, 25744165, ISUZU, 8104644680, LESTER, 8235, 8237, 8241, 8244, 8274, 8277, 8278, 8284, 8286, 8290, 8292, 8292-253, 8492-12, 8492-9, 8493-12, 8493-9, 8494-3, 8495-3, 8496-9
