Part # HO7015R Chrysler Revised Square Back 105 Amp Alternator Upgrade Repair Kit

Part # HO7015R Chrysler Revised Square Back 105 Amp Alternator Upgrade Repair Kit

HO7015R

$224.95 USD
$224.95 USD
Sale Sold out
Shipping calculated at checkout.
CHRYSLER ALTERNATOR 105-AMP UPGRADE KIT Fits the (square back revised) Chrysler alt. with eyelets on stator leads, stepped stator core, and bolt in rectifiers, from 35 to 65 amps., single and double pulleys, used on Chrysler cars, light trucks, Omni, Horizon, industrial, marine and other applications from 1972-1986.

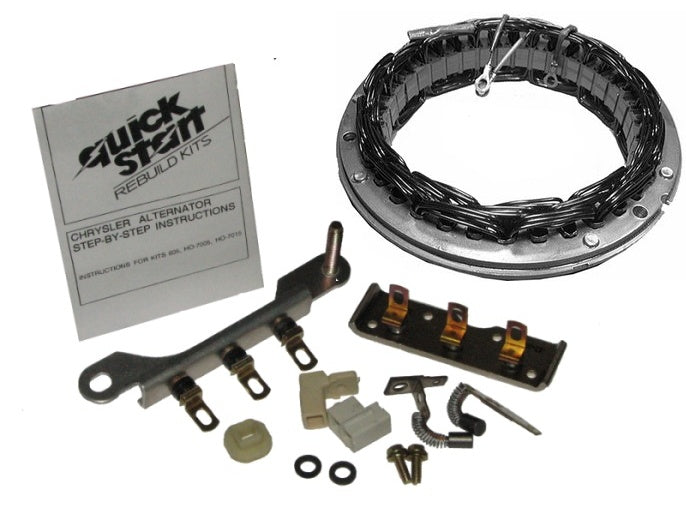

Part #HO7015R Kit Contents:

1- Positive rectifier w/stud
1- Negative rectifier
2- Brush holders
2- Nylon washers
2- Brush holder screws
2- Brushes
1- Positive battery post insulator
1- Mica washer
1- 105 amp. stator
1- Step-by-Step Instruction

Which Chrysler Square Back Kit Do I Need?

side by side difference between early and revised square back stators

There are two styles of Chrysler type Square Back series alternators, an early style and revised. The easiest difference to spot is the stator core. The early style has a smooth stator core, while the revised style has a ridge. Above is an image showing the difference side-by-side between the two stators. You can see the difference without even taking your alternator apart. On the early style, the front and rear housings are separated by the half inch stator core. But on the revised alternator there is about a 1/8 inch gap between the housings.
