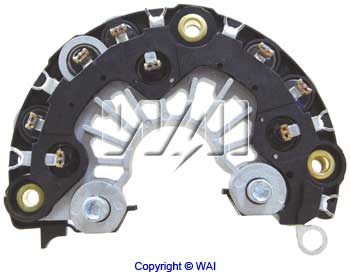

# IBR1200 - Bridge Rectifier, 12 Volt, For Bosch Alternators

IBR1200 - Bridge Rectifier, 12 Volt, For Bosch Alternators

For: Bosch Alternators

Dimensions:

• 120mm OD
• M8 x 1.25 x 17mm Batt. Term.

Notes: Y-wound stator applications

Features:

• 100% New
• 8 40A press-fit avalanche diodes (20-24V)
• Crimp-weld diode stem terminations
• Lead frame with auxiliary phase terminal

Used On: Chevrolet (2001-2006), Opel - Europe (1997-2010), Opel LCV - Europe (1998-2005)

Replaces: Bosch F 00M 113 200, Opel 9198888

Unit Nos: Alfa Romeo 9133600, Bosch 0 124 225 001, 0 124 225 002, 0 124 225 004, 0 124 225 005, 0 124 225 009, 0 124 225 018, 0 124 225 022, 0 124 225 023, 0 124 225 024, 0 124 225 025, 0 124 225 026, 0 124 225 027, 0 124 225 030, 0 124 225 041, Denso Europe DAN1341, Fiat 913360, 9133600, Lancia 9133600, Opel 24-437-119, 24439409, 62-04-179, 90-561-167, 90-589-566, 90-589-721, 90561970, 91-17-890, 91-17-930, 91-17-932, 91-17-933, 91-33-599, 91-33-601, 91-33-602, 91-92-824, 91-92-825, 91-92-826, 9117931, 9129823, 9133600, 9192823, 92-00-956, 93-177-835, Valeo Tech 572853, 575265, 585748, Vauxhall R1530035, R1530082, Lester 21384, 21404, 21948, 21951, 23824
