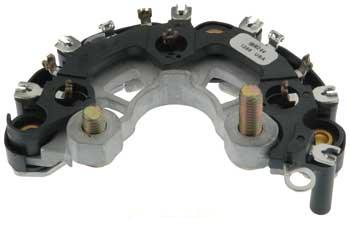

# IBR244 - Bridge Rectifier for Bosch 70-90A Alternators Used On Audi, Dodge Sprinter Van, VW

IBR244 - Bridge Rectifier for Bosch 70-90A Alternators Used On Audi, Dodge Sprinter Van, VW

Replaces: Bosch F-00M-123-201, F-00M-123-244, F-00M-123-227

Unit Nos: Bosch 0-124-225-010; 0-124-315-001, 0-124-315-002, 0-124-315-003, 0-124-315-004, 0-124-315-005, 0-124-315-006, 0-124-315-007, 0-124-315-008, 0-124-315-010, 0-124-315-011, 0-124-315-013, 0-124-315-014; 0-124-320-001; 0-124-325-001, 0-124-325-002, 0-124-325-003, 0-124-325-004, 0-124-325-011, 0-124-325-012, 0-124-325-013, 0-124-325-014, 0-124-325-015, 0-124-325-016, 0-124-325-017, 0-124-325-019, 0-124-325-020, 0-124-325-032, 0-124-325-033, 0-124-325-036, 0-124-325-037, 0-124-325-039, 0-124-325-040, 0-124-325-043, 0-124-325-045, 0-124-325-055, 0-124-325-093

Lester Nos: 12382, 13849, 13850, 13851, 13852, 13921

Dimensions: 120mm OD

Notes: For Y-wound stator applications.

Features:

Transpo

6-50A press-fit avalanche diodes (20-24V)
