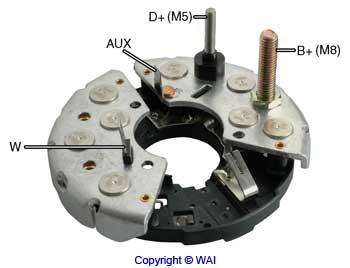

# IBR324 - Bridge Rectifier, 12 Volt, For Bosch 484 Series Alternators

IBR324 - Bridge Rectifier, 12 Volt, For Bosch 484 Series Alternators

For: Bosch 484 Series Alternators

Dimensions:

• 114mm OD
• M5 x 0.8 x 25mm D+ Terminal (Trio)
• M8 x 1.25 x 30mm Battery Terminal

Notes: With trio, w/ W-terminal.

Features:

• 100% New
• 8 50A press-fit avalanche diodes

Used On: Apache (2001-2010), Bell (2000-2006), Case (1984-2013), Caterpillar Ag. & Ind. (1992-1996), Deutz-Allis (1987-1992), Deutz-Fahr (1984-1994), Dynapac (2001-2001), Fendt (1979-1984), Iveco (1985-1991), Iveco Fiat LCV / Heavy Duty - Europe (1983-1991), J.C. Bamford (1995-1995), John Deere (1981-2007), Massey Ferguson (2004-2004), McCormick (2001-2004), New Holland Industrial (1998-2006), Timrick (1998-2004), Willmar (1997-2002)

Replaces: Bosch 1 127 320 692, 1 127 320 913, IHC, Navistar A187905, John Deere AL81451, KHD 132-1074

Unit Nos: Bosch 0 120 484 001, 0 120 484 002, 0 120 484 003, 0 120 484 011, 0 120 484 012, 0 120 484 015, 0 120 484 016, 0 120 484 017, 0 120 484 018, 0 120 484 019, 0 120 484 020, 0 120 484 022, 0 120 484 024, 0 120 484 026, 0 120 484 027, 9 120 060 042, Case 327121A1, 87020406, A187623, AR187623, Caterpillar 9X0341, Cummins 3282554, Deutz Engine Mfr 0117-8607, JLG Industries 7000872, John Deere AE53101, AH137883, AH165975, AL3846201, AL60033, AL60033, AL67176, AL67176, AL78689, AL78690, AL78690, AL78692, AL81437, AL81437, AL81438, AT220394, AZ38462, AZ3846201, RE36267, RE505895, SE501342, SE501343, TY24486, TY6750, TY6777, TY6778, TY6778, TY6779, TY6779, TY6792, TY6793, KHD 117-7063, 117-8607, Letrika (Iskra) 11.201.875, 11.201.989, 11.201.989, 11.201.989, 11.201.989, 11.203.268, 11.203.331, 11.203.332, 11.203.332, 11.203.332, Magneton 9-513-071, 9-513-071, 9-513-071, 9-513-160, 9-513-160, 9-513-170, 9-513-170, 9-515-180, 9-515-361, 9-515-361, 9-515-361, 9-515-530, 9-515-530, MAN 51-26101-7217, New Holland 86577814, Prestolite 20110293, Lester 11845, 12145, 12150, 12151, 12168, 12169, 12373
