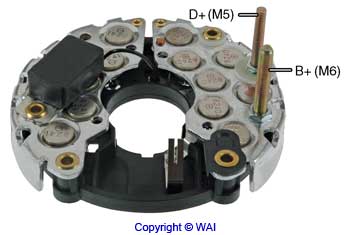

# IBR330 - Bridge Rectifier, 12 Volt, For Bosch 469 Series Alternators

IBR330 - Bridge Rectifier, 12 Volt, For Bosch 469 Series Alternators

For: Bosch 469 Series Alternators

Dimensions:

• 120mm OD
• M5 x 0.8 x 25mm D+ Terminal (Trio)
• M6 x 1.0 x 33mm Battery Terminal

Notes: With trio.

Features:

• 100% New
• 14 40A press-fit diodes

Also See: 319107

Used On: Volvo (1978-1988), Volvo - Europe (1982-1991)

Replaces: Bosch 1 127 320 370, 1 127 320 576, Volvo 1259562

Unit Nos: Bosch 0 120 450 008, 0 120 450 009, 0 120 469 563, 0 120 469 564, 0 120 469 567, 0 120 469 568, 0 120 469 608, 0 120 469 609, 0 120 469 628, 0 120 469 664, 0 120 469 665, 0 120 469 668, 0 120 469 669, 0 120 469 670, 0 120 469 680, 0 120 469 681, Magneton 9-515-511, 9-515-511, Volvo 1234953, 1258367, 1258995, 1258995-0, 1269702-5, 1308723-4, 1323351, 1323351-0, 1323351-5, 1323490, 1323490-0, 1323490-1, 1324142, 1324142-0, 1324142-7, 1324674, 1324953, 1324956-0, 1348501, 1348507, 1348507-3, 1348509, 136278, 1362798, 1362798-0, 1362798-9, 5001961-1, 5002052, 5002052-8, 5002730-0, 5002730-9, 5002802-6, 5002899, 5002899-0, 5003000-6, 5003002-0, 5003002-2, Lester 13023, 13161, 14420, 14785
