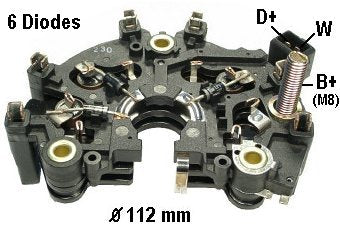

Part # IBR852 (31-9121) Rectifier For Bosch 70-90A Alternators Used On (2002-93) VW Replaces Bosch 1-127-319-552, 1-127-319-728, 1-127-320-852

Used On (2002-93) VW

Replaces Bosch 1-127-319-552, 1-127-319-728; 1-127-320-852; VW-Audi 028-903-359B, J Unit Nos Bosch 0-120-335-007; 0-120-340-003; 0-120-485-034, 0-120-485-043, 0-120-485-044; 0-123-310-001, 0-123-310-002, 0-123-310-003, 0-123-310-018, 0-123-310-019, 0-123-310-020, 0-123-310-024, 0-123-310-025, 0-123-310-032, 0-123-310-034, 0-123-310-035, 0-123-310-037, 0-123-310-038, 0-123-310-039, 0-123-310-040, 0-123-310-046, 0-123-310-049; 0-123-315-001, 0-123-315-002, 0-123-315-006, 0-123-315-021, 0-123-315-501; 0-123-320-006, 0-123-320-007, 0-123-320-008, 0-123-320-017, 0-123-320-018, 0-123-320-019, 0-123-320-024, 0-123-320-027, 0-123-320-031, 0-123-320-032, 0-123-320-034, 0-123-320-036, 0-123-320-037, 0-123-320-038, 0-123-320-063

Lester # 12379, 13380, 13381, 13605, 13606, 13831, 13832, 13902, 13903, 20375, 20903, 21482, 21483, 21484, 23706, 23770, 23771

Dimensions 112mm OD M8 x 1.25 x 33mm Batt. Term.

Notes With diode trio

Features Transpo 6-50A press-fit avalanche diodes (20-24V)
