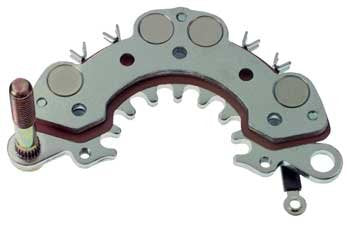

# IHR746 - Bridge Rectifier, 120 Amp Rated, 12 Volt, Hitachi 70 to 90 Amp Alternators

IHR746 - Bridge Rectifier, 120 Amp Rated, 12 Volt, Hitachi 70 to 90 Amp Alternators

For: Hitachi 70 to 90 Amp Alternators

Dimensions:
114mm OD
M8 x 1.25 x 45mm Battery Terminal

Notes: Without diode trio.

Features:
100% New
8-30 Amp press-fit diodes

Also See: IH767, IH782

Used On: Nissan (1995-1999)

Replaces: Hitachi GD109578B, L170G-13201, L190G-43203, Nissan, Infiniti 23230-0M000, 23230-0W000

Unit Nos: HITACHI LR170-748, LR170-748B, LR170-748BR, LR180-751, LR180-751R, LR190-729, LR190-729C, LR190-729CR; NISSAN 23100-0M003, 23100-0M003R, 23100-0M005, 23100-0W000, 23100-0W004, 23100-3M200, 23100-3M200R; LESTER 13637, 13638, 13728
