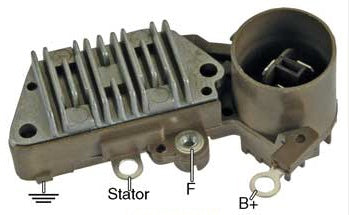

# IN434 - Voltage Regulator for Nippondenso (Denso) Alternators - 12 Volt, For: Nippondenso Alternators Used On Dodge, Geo, Lexus, Toyota

IN434
Voltage Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Voltage set point, 5 sec. LRC
For: Nippondenso Alternators
Used On: 1988-1996 Dodge, Geo, Lexus, Toyota
Unit Nos: Nippondenso 100211-340, 100211-606, 100211-611, 100211-635,
100211-637, 100211-704, 100211-710, 100211-718, 100211-778,
100211-782, 100211-796, 100211-802, 100211-805, 100211-807,
100211-811, 100211-823, 100211-832, 100211-838, 100211-839,
100211-845, 100211-847, 100211-848, 100211-850, 100211-859,
100211-884, 100211-885, 100211-984; 101211-521
Lester Nos: 13234, 13252, 13276, 13278, 13319, 13321,
13339, 13384, 13385, 13393, 13398, 13455, 13566; 14849
WAI Ref. Nos: 1-1041-01ND, 1-1042-01ND, 1-1043-01ND, 1-1054-01ND, 1-1055-01ND, 1-1063-01ND,
1-1076-01ND, 1-1092-01ND, 1-1418-01ND, 1-1419-01ND, 1-1420-01ND, 1-1421-01ND,
1-1546-01ND, 1-1858-01ND, 1-1859-01ND, 1-1966-01ND, 1-1974-01ND, 1-2149-01ND
Dim: 63.5mm Mtg. Length
Note: Standard lamp function - no output.

Features:
- Transpo
- Ignition activated
(Ref. No: 35-8225)
