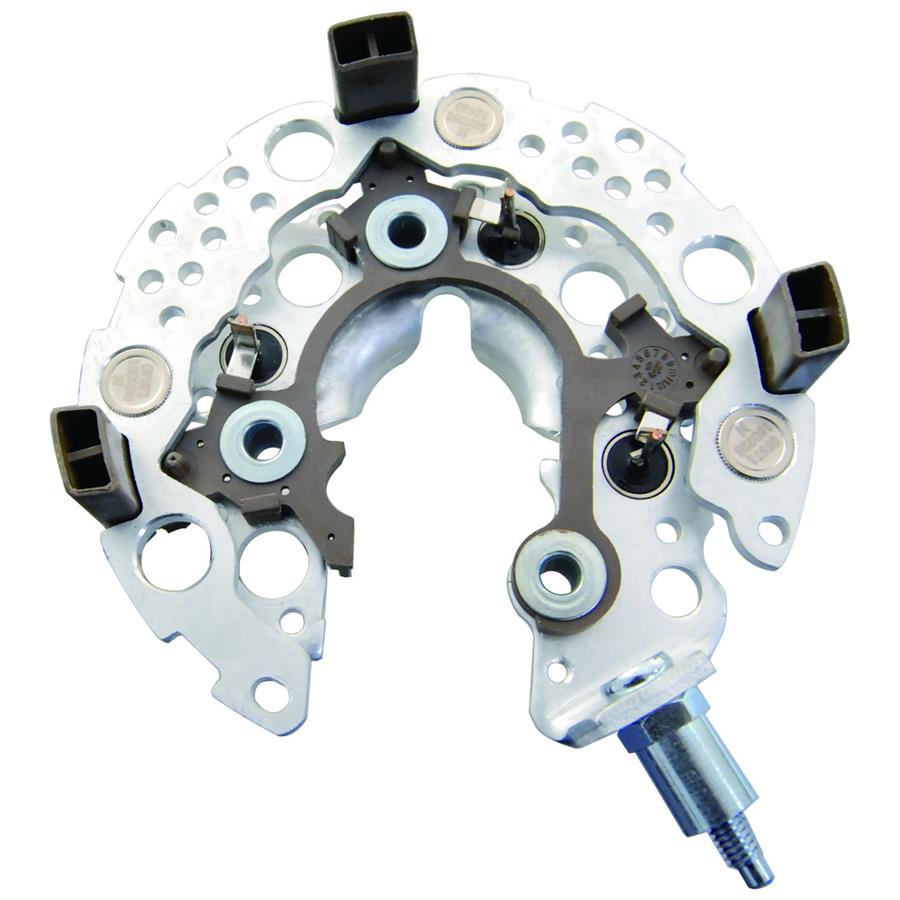

# INR430AL - 150A Rated Bridge Rectifier for Denso type Alternators

INR430AL

Dimensions:

• 117 mm OD
• M6 x 1.0 Battery Terminal

Features

• 100% New
• 6-50A press-fit avalanche diodes (20-24V)
• Spot Welding Terminals
• Aluminum Heat Sink

For: Denso 100A IR/IF Alternators

Part Type: Rectifier

Y Or Delta: DELTA

Replaces: Denso 021580-6610, Original Reference Number 1661, 2661, 661, 81119811, Toyota 27357-30070

Used On: Jaguar - Europe (2004-2010) ** Lexus (2004-2009) ** Pontiac (2009-2010) ** Scion (2005-2014) ** Toyota (2004-2021) ** Toyota - China (2007-2012) ** Toyota - Europe (2000-2019)

Lester Numbers: 11033, 11034, 11088, 11136, 11138, 11153, 11195, 11201, 11322, 11324, 11350, 11385, 11386, 11402, 11517, 11519, 11577, 20359, 20395, 20538, 20953, 21230, 21418, 23316, 23843, 23947, 24056, 24110, 24114, 24123

Unit Numbers: Denso 104210-1461, 104210-1464, 104210-2080, 104210-2180, 104210-2181, 104210-2182, 104210-2183, 104210-2270, 104210-2290, 104210-2291, 104210-2300, 104210-2310, 104210-2320, 104210-2340, 104210-2341, 104210-2344, 104210-2470, 104210-2471, 104210-2472, 104210-2520, 104210-2630, 104210-2800, 104210-2801, 104210-2802, 104210-284, 104210-2840, 104210-3410, 104210-3411, 104210-3430, 104210-3431, 104210-3620, 104210-3680, 104210-3720, 104210-3780, 104210-3790, 104210-3880, 104210-3890, 104210-4101, 104210-4102, 104210-4230, 104210-4470, 104210-4471, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104210-4740, 104210-4760, 104210-4790, 104210-4791, 104210-4792, 104210-4793, 104210-4794, 104210-4795, 104210-4830, 104210-4880, 104210-4881, 104210-4920, 104210-4921, 104210-5100, 104210-5110, 104210-5140, 104210-5150, 104210-5151, 104210-5290, 104210-5291, 104210-5292, 104210-5293, 104210-5294, 104210-5330, 104210-5350, 104210-5351, 104210-5352, 104210-5353, 104210-5440, 104210-5480, 104210-5481, 104210-5490, 104210-5491, 9664219-208, 9664219-362, 9664219-378, 9664219-379, 9664219-388, 9664219-389, 9664219-423, 9664219-492, 9664219-533, DAN1018; Ford 4R83-10300-AB; Ford Engineering 4R83-AB; GM 88975507, 88975511; Lexus 27060-0A120, 27060-0A120-84, 27060-0P141-84, 27060-20270, 27060-20270-84, 27060-31080, 27060-31081, 27060-31081-84, 2706020210; Lucas LRA03288; Magneton 9-515-020; Original Reference Number TN104210-4470; Scion 27060-28270, 27060-28270-84, 27060-28350, 27060-28350-84, 27060-36010, 27060-36011, 27060-37040, 27060-37041; Toyota 27060-0A120, 27060-0A120-84, 27060-0F060, 27060-0F060-84, 27060-0F080, 27060-0F080-84, 27060-0G010, 27060-0G011, 27060-0H100, 27060-0H100-84, 27060-0H110, 27060-0H111, 27060-0H111-84, 27060-0N020, 27060-0N021, 27060-0N021-84, 27060-0N040, 27060-0N050, 27060-0P030, 27060-0P030-84, 27060-0P140, 27060-0P141, 27060-0P141-84, 27060-0Q070, 27060-0R011, 27060-0S030, 27060-0T020, 27060-0T040, 27060-0T041, 27060-0T041-84, 27060-0T050, 27060-0T051, 27060-0T130, 27060-0T130-84, 27060-0V010, 27060-0Y020, 27060-0Y040, 27060-0Y041, 27060-0Y060, 27060-20270, 27060-20270-84, 27060-27090, 27060-28260, 27060-28260-84, 27060-28270, 27060-28270-84, 27060-28300, 27060-28301, 27060-28301-84, 27060-2830184, 27060-28330, 27060-30060, 27060-30130, 27060-31080, 27060-31081, 27060-31081-84, 27060-31090, 27060-31091, 27060-31091, 27060-31091-84, 27060-31091-84, 27060-31120, 27060-31120-84, 27060-31180, 27060-33071, 27060-33072, 27060-33100, 27060-36010, 27060-36011, 27060-36050, 27060-36050-84, 27060-37010, 27060-37011, 27060-37040, 27060-37041, 27060-37081, 27060-40050
