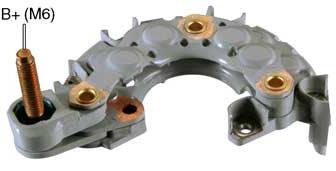

# INR722P - Bridge Rectifier, 12 Volt, Denso Alternators w/ 118mm OD Stator

# INR722P - Bridge Rectifier, 12 Volt, Denso Alternators w/ 118mm OD Stator

For: Denso 80-90A IR/IF Alternators w/ 118mm OD Stator

Dimensions:

• 103mm OD
• M8 x 1.25 x 48mm Batt. Term.

Notes:

• With mounting hole for 46-82300 ground strap.
• Similar to INR402P except INR402P w/ M6 B+ terminal.

Features:

• 100% New Transpo
• 8-40A press-fit diodes
• Welded diode terminations

Also See: 46-82300;INR402P

Used On: Jeep (2001-2006) , John Deere (1993-2007) , Lexus (1993-2000) , Lexus - Europe (1994-1997) , Toyota (1993-1998)

Replaces: Denso 021580-4640, 021580-4650, 021580-4790, Toyota 27357-46130, 27357-46290

Unit Nos: CHRYSLER 56041565AB, 56041864AA, 56041864AB, 56044530AA, 56044530AB, 56044530AC; DENSO 100211-8830, 100211-8940, 101211-5030, 101211-5450, 101211-5560, 101211-5610, 101211-5920, 101211-9150, 101211-9160, 101211-9350, 101211-9410, 101211-9710, 101211-9711, 102211-1180, 121000-3810, 121000-3820, 121000-3821, 121000-3850, 121000-3851, 9651219-915, 9661219-916, 9661219-941, 9761211-556, 9761211-561; JOHNDEERE RE34888, RE500227, SE501836, TY6763; LEXUS 27060-46060, 27060-46060-84, 27060-46140, 27060-46180, 27060-46250, 27060-46250-84, 27060-50190, 27060-50190-84; TOYOTA 27060-46050, 27060-46050-84, 27060-46080, 27060-46190, 27060-46190-84, 27060-46200, 27060-46200-84, 27060-46230; LESTER 12193, 12474, 13545, 13546, 13552, 13669, 13748, 13876, 13907, 13960
