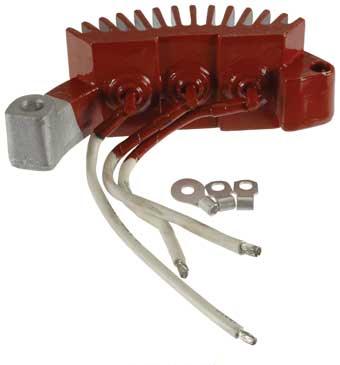

# LR97084 (31-505) - Positive Bridge Rectifier for Leece-Neville 2800J, 4800J Series Alternators

LR97084 (31-505) - Positive Bridge Rectifier
for Leece-Neville 2800J, 4800J Series Series 145-160A/12V Alternators

Replaces:  IHC 493119C91, LEECE-NEVILLE 97084, PRESTOLITE A051102219

Unit Nos:  BLUEBIRD 48139, 48141,
CUMMINS 3675160RX, 3675161RX,
GM 2009669,
IHC 1618318C91, 1664634C91, 3514998C92, 527890C91, 547269C91, 585948C91, 585948C91,
LEECENEVILLE 2670J, 2670JB, 2706J, 2706JB, 2706LC, 2800J, 2800JB, 2800JC, 2800LC, 2800LCRM, 2802J, 2802JB, 2802JC, 2805J, 2805JB, 2808J, 2808JB, 2812JB, 2813JC, 2819J, 2819JB, 2824J, 2824JB, 2913JC, 4200BA, 4700AA, 4754J, 4754JA, 4800J, 4800JB, 4833LGH, 4833LGHRM, 4836LGH, 4836LGHRM, 7701AA, 7702AA, 7705, 7705A, 7705AA, 90592, 9800J, 9800JB, A001090592, A001090752, A0012670JB, A0012706JB, A0012706LC, A0012800JB, A0012800JC, A0012800LC, A0012802J, A0012802JB, A0012802JC, A0012808JB, A0012812JB, A0012813JC, A0012819JB, A0012824JB, A0012913JC, A0014700AA, A0014754JA, A0014800JB, A0014833LGH, A0014836LGH, A0017701AA, A0017702AA, A0017705AA, A0019800JB, RJ2670, RJ2805

Used On:  Bluebird (1997-2009) , Dodge (1970-1977) , Ford (1972-2006) , Freightliner (1989-2005) , International (1984-2007) , Kenworth (1988-2005) , Mack (1978-1999) , Peterbilt (1991-2005) , Sterling (1999-2004) , Volvo (1989-2004) , Western Star (1989-2004)

Also See:  LR97084HD, LR97085

Lester Nos:  7613, 7614, 7643, 7708, 8396, 8455, 8504, 8505, 8507, 8508, 8509, 8510, 8658, 8663, 8673

Dimensions: 43mm (1-11/16) Thick Heat Sink

Features:
100% New Transpo
50A press-fit diodes
Hi-temperature insulated wire
Wire terminals included
Die cast aluminum heat sink
