M5-228A - Voltage Regulator for 8AL Series Alternators

M5-228A - Voltage Regulator for 8AL Series Alternators

M5228A

$65.00 USD
$65.00 USD
Sale Sold out
Shipping calculated at checkout.
  • M5228A Voltage Regulator for Motorola / Prestolite 8AL Series Alternators
  • 12 volt
  • 14.1 Volt set point
  • B-Circuit
  • Adjustable Voltage
Notes:   Plug-Type E; Wiring Code 6

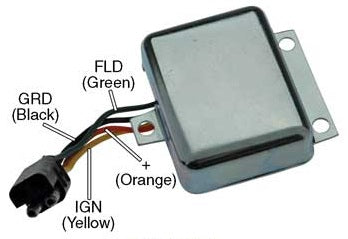

Terminal ID: Orange Trio (+), Black Ground, Green Field, Yellow Ignition
Features:  100% New Transpo
Adjustable voltage
Used On:  -
Replaces:  FORD D3JL-10316-A, D3JL-10316-AB, D3NN-10316-A, D7NN-10316-B, MOTOROLA 5-173, 5-205, 5-210, 5-228, 5-230, 8RD2035, 8RH2006, 8RH2023, 8RH2026, 8RH2032, 8RH2040, PRESTOLITE 105-173, 105-205, 105-210, 105-228, 105-230
Unit Nos:  MOTOROLA 10-249, 10-746, 10-753, 10-778, 10-779, 8AL2080K, 8AL2080KA, 8AL2095K, 8AL2096K, 8AL2099K, 8AL2100L; PRESTOLITE 110-249, 110-497, 110-746, 110-753, 110-778, 110-779
Lester Nos:  for alternator # 7377N
