# M5292A - Voltage Regulator 12 Volt, For: Leece-Neville / Motorola 8LHA Series Alternators

M5292A
Voltage Regulator
12 Volt, A-Circuit, 14.2 Volt set point
For: Leece-Neville / Motorola 8LHA Series Alternators
Unit Nos: Leece-Neville / Motorola 8LHA2027, 8LHA2050VA, 8LHA2050VC, 8LHA2070V,
8LHA2081V, 8LHA2096VA, 8LHA8073V; 110-434, 110-555, 110-916
Replaces regulator #'s Ford F3HZ-10316-B, Motorcraft GR-810, Motorola 5-292, 8RG2029A
Prestolite 105-292
Lester Nos: 8058, 8059
WAI Ref. Nos: 1-2126-40MO, 1-2429-00MO
Note: 5 amp field. For 7 amp field version use M5-329A.
Plug-Type: K-3 & L; Wiring Code 10

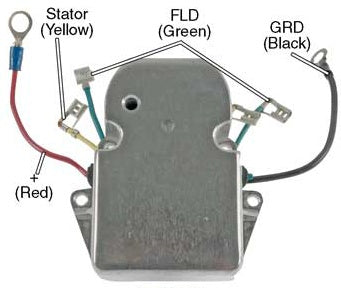

Terminal ID: Red Positive (+), Black Ground, Green Field, Yellow Stator
Features:
- Transpo
- Adjustable voltage
