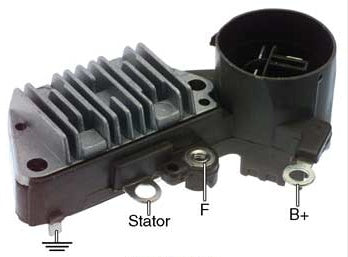

# IN224 - Voltage Regulator for Nippondenso (Denso) Alternators Used On Acura, Honda Vehicles - 12 Volt, A-Circuit, C-FR-IG-L Terminals

IN224
Voltage Regulator
12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Volt set point
For: Nippondenso Alternators

Used On: (1997-88) Acura, Honda
Unit Nos: Nippondenso 100211-359, 100211-366, 100211-369, 100211-389, 100211-815,
100211-819, 100211-828, 100211-855, 100211-871, 100211-875, 100211-877, 100211-977,
101211-025, 101211-549, 101211-550, 101211-569, 101211-584, 101211-585, 101211-914
Lester Nos: 13325, 13395, 13507, 13508, 13509, 13538, 13539, 13540, 13684, 14989
WAI Ref. Nos: 1-1001-01ND, 1-1011-01ND, 1-1011-02ND, 1-1017-01ND, 1-1726-01ND,
1-1831-01ND, 1-1854-01ND, 1-1854-02ND, 1-1932-01ND, 1-2082-01ND, 1-2353-01ND
Dim: 63.5mm Mtg. Length
Note: Active lamp function - with output.
Ref. No: 35-8214-2
