Part # INR402P - Bridge Rectifier For Denso Alternators w/ 118mm Stators. used on 2002-89 Acura, Chevrolet, Geo, Honda, Isuzu, Lexus, Toyota vehicles

INR402P

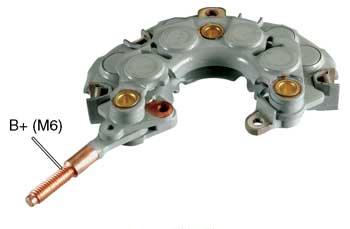

(318212) Bridge Rectifier Denso 70-110A Alternators w/ 118mm OD Stator
Used On:
(2002-89) Acura, Chevrolet, Geo, Honda, Isuzu, Lexus, Toyota
Replaces:
Denso 021580-3660, 021580-3830, 021580-4030, 021580-4080, 021580-4480, 021580-4510, 021580-4630, 021580-4760
For:
Nippondenso 70-110A Alternators w/ 118mm OD Stator
Used On:
(2002-89) Acura, Chevrolet, Geo, Honda, Isuzu, Lexus, Toyota
Unit Nos:
Nippondenso 100211-802, 100211-803, 100211-805, 100211-806, 100211-807
100211-811, 100211-813, 100211-815, 100211-819, 100211-828, 100211-830, 100211-835
100211-838, 100211-839, 100211-848, 100211-854, 100211-855, 100211-856, 100211-857
100211-864, 100211-866, 100211-871, 100211-874, 100211-875, 100211-877, 100211-885
100211-886, 100211-889, 100211-899; 101211-501, 101211-502, 101211-508, 101211-511
101211-514, 101211-515, 101211-516, 101211-523, 101211-524, 101211-527, 101211-528
101211-536, 101211-541, 101211-542, 101211-543, 101211-549, 101211-550, 101211-554
101211-562, 101211-569, 101211-571, 101211-572, 101211-585, 101211-597, 101211-901
101211-906, 101211-910, 101211-912, 101211-914, 101211-925, 101211-931, 101211-933
101211-951, 101211-959, 101211-960, 101211-963, 101211-976, 101211-978, 101211-981
101211-986, 101211-996, 101211-999; 102211-101, 102211-102, 102211-124, 102211-171
Lester Number: 13276, 13278, 13319, 13323, 13325, 13331, 13393, 13394, 13395, 13396
13407, 13408, 13413, 13457, 13481, 13487, 13489, 13495, 13497, 13506, 13507, 13529
13537, 13538, 13539, 13540, 13551, 13557, 13558, 13674, 13677, 13684, 13722, 13732
13737, 13743, 13747, 13754, 13755, 13756, 13767, 13768, 13776, 13794
Dimensions:
103mm OD
Features:
- 8-40A press-fit diodes
- Welded diode terminations
- M6 x 1.0 x 43mm Battery. Terminal
- With mouning hole for 46-82300 ground strap. Similar to INR722P except INR722P w/ M8 B+ terminal.
