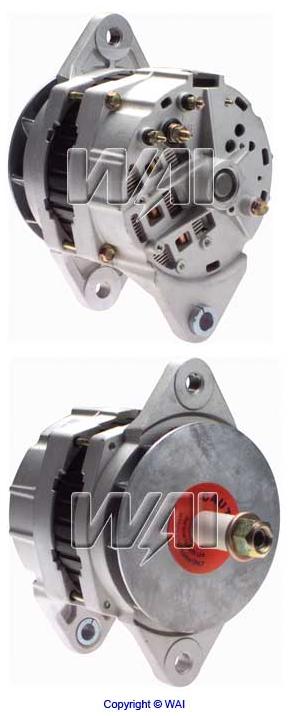

1229900DR - Alternator - Delco type 21SI Series
145-160 Amp, 12 Volt, 1-Wire System, Negative Ground.
Used On:
Ford Truck, International-Navistar
Replaces:
Delco 1117916, 1117924, 1117933, 1117948, 1117952, 19010156
Lester: 7644, 7669, 7672
Dimensions:
1/4-28 Batt. Term.
Universal R-Term.
10-24 I-Term.
Notes: Bidirectional Fan wo/ pulley
Features:
100% New
WAI-Transpo premium rectifier & regulator
Premium, hi-temperature WBD 6305 bearing
Long-shaft rotor & longer needle bearing provides more bearing surface to spread the load for longer lasting service
1/4-20 thru bolts - larger than OE 10-24 bolts
Rotor coil leads are epoxied to prevent vibration failure
Hi-temperature class-H windings
Precision CNC machined castings
OE performance output curve
Also consider:
1-2280-00DR Alternator, 22SI, 145A
Reference: 1-2299-00DR,
| AC-Delco |
321-688 |
| Bosch New |
AL9960LH |
| Bowers |
BAO3131 |
| Cargo |
111232 |
| Cummins |
3604668RX |
| Delco |
1117916, 1117933, 1117948 |
| Delco Remanufactured |
10459050, 10459051 |
| Dixie Electric |
A-1350 |
| Dixie Electric New |
101-21103 |
| Elpar Industries |
021103621 |
| J & N |
400-12075, 400-12075R |
| New Tech |
N7669 |
| New Tech HO |
N7669HO |
| Rayloc |
130806 |
| WAI Old |
1-2299-00DR, 20-1108, 42775 |
| Whatcom APPTRAK |
46369 |
| Wilson Heavy Duty |
90-01-4072 |
| Ford Bus |
B600 / B700 / B800 School Bus 1996
B600 / B700 / B800 School Bus Cummins 5.9L-359 (FD1060) 1992-1995
B600 / B700 / B800 School Bus Cummins 8.3L-504 (FD1460) 1992-1996 |
| Ford Medium & Heavy-Duty Trucks |
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar 3126 1995-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar 3176 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar 3208 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar 3306 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar 3406 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar C-10 1997-1999
L6000 / 7000 / 8000 / 9000 Trucks Caterpillar C-12 1997-1999
L6000 / 7000 / 8000 / 9000 Trucks Cummins 5.9L-359 (FD1060) 1992-1999
L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460) 1989-1999
L6000 / 7000 / 8000 / 9000 Trucks Cummins 855 (NHC, NTC) 1990-1992
L6000 / 7000 / 8000 / 9000 Trucks Cummins L-10 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Cummins M11 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks Cummins N14 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks DD 60 Series 1990-1999
L6000 / 7000 / 8000 / 9000 Trucks DD 6V-92 1990-1991
L6000 / 7000 / 8000 / 9000 Trucks Ford 6.6L(401) V8 Dsl 1990-1995
L6000 / 7000 / 8000 / 9000 Trucks Ford 7.8L(476) V8 Dsl 1990-1995 |
| Ford Medium Duty |
F600 L6 5.9L 359cid 1993-1994
F700 L6 5.9L 359cid 1993-1996
F800 L6 5.9L 359cid 1993-1996
F800 L6 8.3L 504cid 1992-1996 |
| International Heavy Duty |
3000-3900 Series Bus IHC 7.3L (T-444E) 1988-1996
3000-3900 Series Bus IHC DT-360 1988-1993
3000-3900 Series Bus IHC DT-466 1988-1996
3000-3900 Series Bus IHC NGD-V8 1995-1996
5000-5900 Series Severe Service Caterpillar 3406 1988-1992
5000-5900 Series Severe Service Cummins L-10 1988-1992
5000-5900 Series Severe Service Cummins N14 1991-1992
5000-5900 Series Severe Service Cummins NTC-855 1990-1992
7100-7700 Severe Service IHC DT-466 1990-1992
8100-8600 Heavy-Duty Caterpillar 3176 1990-1992
8100-8600 Heavy-Duty Caterpillar 3406 1988-1992
8100-8600 Heavy-Duty Cummins L-10 1988-1992
8100-8600 Heavy-Duty Cummins N14 1991-1992
8100-8600 Heavy-Duty Cummins NTC-855 1988-1992
8100-8600 Heavy-Duty DD 50 / 60 Series 1992
8100-8600 Heavy-Duty IHC DT-466 1990-1992
9100-9900 Heavy-Duty Caterpillar 3176 1988-1992
9100-9900 Heavy-Duty Caterpillar 3406 1987-1992
9100-9900 Heavy-Duty Cummins L-10 1988-1992
9100-9900 Heavy-Duty Cummins N14 1986-1992
9100-9900 Heavy-Duty Cummins NTC-855 1986-1992
9100-9900 Heavy-Duty DD 60 Series 1992 |
| International Medium Duty |
1452 IHC 7.3L (T-444E) 1988-1992
1452 IHC DT-360 1988-1992
1652 / 1654 IHC 7.3L (T-444E) 1988-1992
1652 / 1654 IHC DT-360 1988-1992
1754 IHC DT-360 1988-1989
1754 IHC DT-466 1988-1989
1954 IHC DT-466 1988-1989
2300-2375 Series Cummins L-10 1988-1992
2554 / 2564 Series IHC DT-466 1988-1994
2574 / 2575 Series Cummins 855 1988-1992
2574 / 2575 Series Cummins L-10 1988-1992
2574 / 2575 Series Cummins NTC-855 1988-1992
2654 Series IHC DT-466 1988-1994
2674 / 2675 Series Cummins L-10 1988-1992
2674 / 2675 Series Cummins NTC-855 1988-1992
2674 / 2675 Series IHC DT-466 1988-1994
4000-4900 Series Medium-Duty IHC 7.3L (T-444E) 1988-1992
4000-4900 Series Medium-Duty IHC DT-360 / 408 1990-1992
4000-4900 Series Medium-Duty IHC DT-466 1988-1992 |
|
