# 21117  Dive End (D.E.) Frame

For: Delco CS130 Series Alternators

Used On: (1991-86) Buick, Cadillac, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 10496671, 10496672, D3459

Unit Nos: Delco 1101127, 1101146, 1101158, 1101179, 1101181, 1101186, 1101229, 1101264, 1101272, 1101273, 1101275, 1101292, 1101601
1105678

Lester Nos: 7803, 7804, 7808, 7888

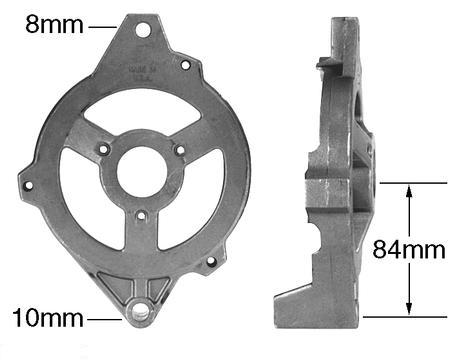

Dimensions:
Mtg. Ear Hole Size: 8mm
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 84mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm

Notes: Used w/ 6203 ball bearing, requires 46-1602-2 rotor spacer.

Features:
Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws (46-1505, 84-1351)
