Drive End Housing CS130

21124 Drive End (D.E.) Frame

For: Delco CS130 Series Alternators

Used On: Buick (1991-1993) Cadillac (1991-1992) Chevrolet (1987-1995)

Replaces: Delco 10468200, 10476024, 10495358, 10495359, D3454, Original Reference Number 215

Unit Nos: Delco 10463001, 10463002, 10463044, 10463045, 10463086, 10463092, 10463098, 10463099, 10463104, 10463110, 10463111, 10463123, 10463146, 10463147, 10463148, 10463149, 10463158, 10463164, 10463165, 10463172, 10463181, 10463212, 10463245, 10463339, 10463376, 10463387, 10463424, 10463445, 10479801, 10479802, 10479807, 10479808, 10479896, 10479906, 10479912, 10479921, 10479922, 10479993, 10479994, 10479997, 10480028, 1101110, 1101111, 1101253, 1101254, 1101255, 1101293, 1101317, 1101318, 1101500, 1101521, 1101582, 1101599, 1101600, 1101616, 1101617, 1101620, 1101628, 1101629, 1101632, 1101633, 1101637, 1101645, 1101646, 1101647, 1105710, 1105711, 1105715; GM 10463001, 10463002, 10463044, 10463045, 10463086, 10463092, 10463098, 10463099, 10463104, 10463110, 10463111, 10463123, 10463146, 10463147, 10463148, 10463149, 10463158, 10463164, 10463165, 10463172, 10463181, 10463212, 10463245, 10463368, 10463376, 10463387, 10463424, 10463445, 19152476, 88864238, 88877240

Lester Nos: 7861-11, 7861-3, 7861-7, 7917-11, 7921-11, 7921-3, 7921-7, 7925-11, 7974-7, 7981-7, 8165-7

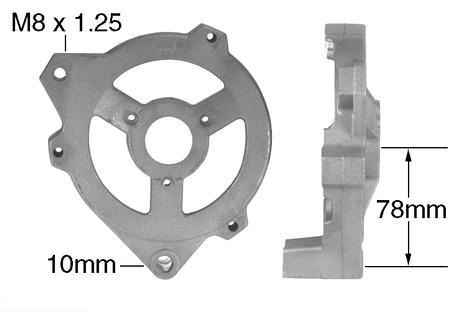

Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm

Notes:
Used w/ 6203 ball bearing, requires 46-1602-2 rotor spacer.
For version w/ 6303 ball bearing use 21-146-1.

Features: Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws (46-1505, 84-1351)

Detailed vehicle Application
