Part No. 21125 CS130 Alternator Front D.E. (Drive End) Housing

Part No. 21125 CS130 Alternator Front D.E. (Drive End) Housing

21125

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.
21125 Drive End (D.E.) Frame

For: Delco CS130 Series Alternators

Used On: Buick, Chevrolet, Oldsmobile, Pontiac, Oldsmobile, and others

Replaces: Delco 10496336, 10496337, D3458

Unit Nos: Delco 1101191, 1101461, 1101605, 1105701, 10479963

Lester Nos: 7886, 7933

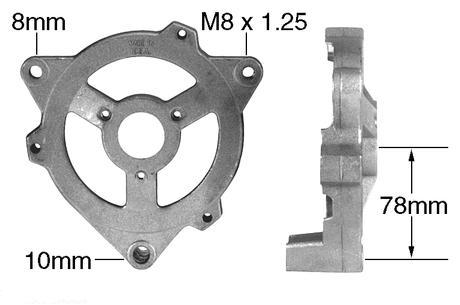

Dimensions:
Mtg. Ear-1 Hole Size: 8mm
Mtg. Ear-1 Thickness: 18mm
Mtg. Ear-2 Hole Size: M8 x 1.25
Mtg. Ear-2 Thickness: 18mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm

Notes:
Used w/ 6203 ball bearing, requires 46-1602-2 rotor spacer.
For version w/ 6303 ball bearing use 21-164-1.

Features:
Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws (46-1505, 84-1351)
