Part No. 21128

Part No. 21128

21128

$28.95 USD
$28.95 USD
Sale Sold out
Shipping calculated at checkout.

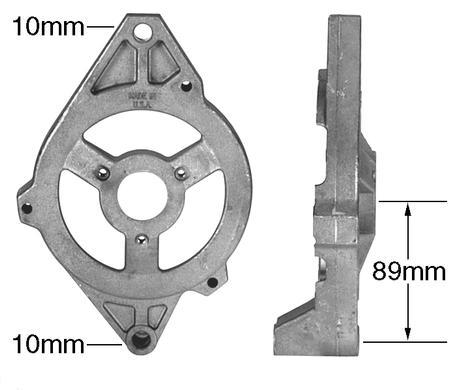

21128 Drive End (D.E.) Frame

For: Delco CS130 Series Alternators

Used On: (1993-88) Buick, Oldsmobile, Pontiac

Replaces: Delco 10499700, D3179

Unit Nos: Delco 1101310, 1101577, 1101649, 1101650, 1102604, 1102607, 10479901, 10479962, 10480027, 10480040

Lester Nos: 7914, 7964

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 20mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm

Notes:
Used w/ 6203 ball bearing, requires 46-1602-2 rotor spacer.
For version w/ 6303 ball bearing use 21-139-1.

Features:
Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws (46-1505, 84-1351)
