Part No. 21130

Part No. 21130

21130

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.

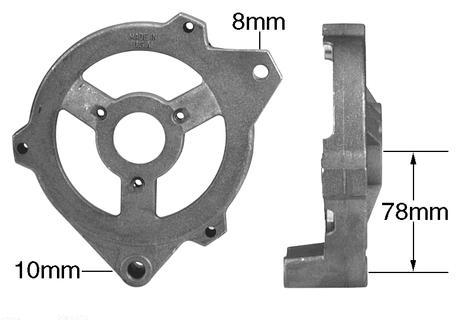

D.E. Frame

For: Delco CS130 Series IR/EF Alternators

Used On: (1994-88) Buick, Chevrolet, Oldsmobile, Pontiac

Replaces: Delco 10499095, 10499096

Unit Nos: Delco 1101101, 1101107, 1101466, 1101467, 1101606, 1102602, 1102603, 10479897, 10480037

Lester Nos: 7910, 7939

Dimensions:
Mtg. Ear Hole Size: 8mm
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 78mm
Bearing Bore Dia: 40mm
Stator Bore Dia: 126mm

Notes:
Used w/ 6203 ball bearing, requires 46-1602-2 rotor spacer.
For version w/ 6303 ball bearing use 21-151-1.

Features:
Allows use of either snap-on bearing retainer (46-1507) or bearing retainer & screws (46-1505, 84-1351)
